Removal & Installation (C70, S70 & V70 - Left Side)

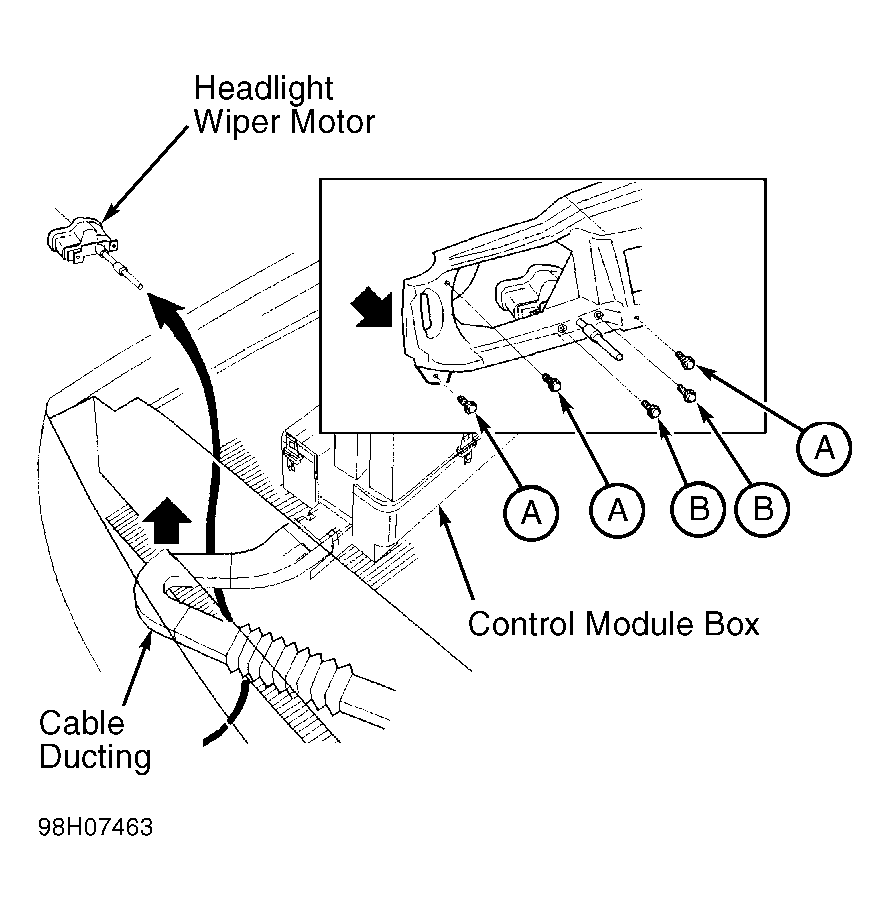

- Disconnect negative battery cable. Remove wiper arms. See HEADLIGHT WIPER ARMS under REMOVAL & INSTALLATION. Remove headlight and side-marker assembly. Remove air baffle between spoiler and radiator. Remove 2 screws ("B") securing headlight wiper motor. See Figure .
- Remove left side radiator mount bolt and loosen right side bolt. Move radiator back enough to remove motor. Disconnect electrical connector. Working from inside engine compartment, remove wiper motor. To install, reverse removal procedure. Adjust wiper arm as necessary. See HEADLIGHT WIPER ARM ADJUSTMENT under ADJUSTMENTS.
