Steering Wheel & Horn: Installation

To install, reverse removal procedure. To properly adjust contact reel and complete installation, see AIR BAG RESTRAINT SYSTEMS article. Tighten steering wheel retaining bolt to specification. See TORQUE SPECIFICATIONS  .

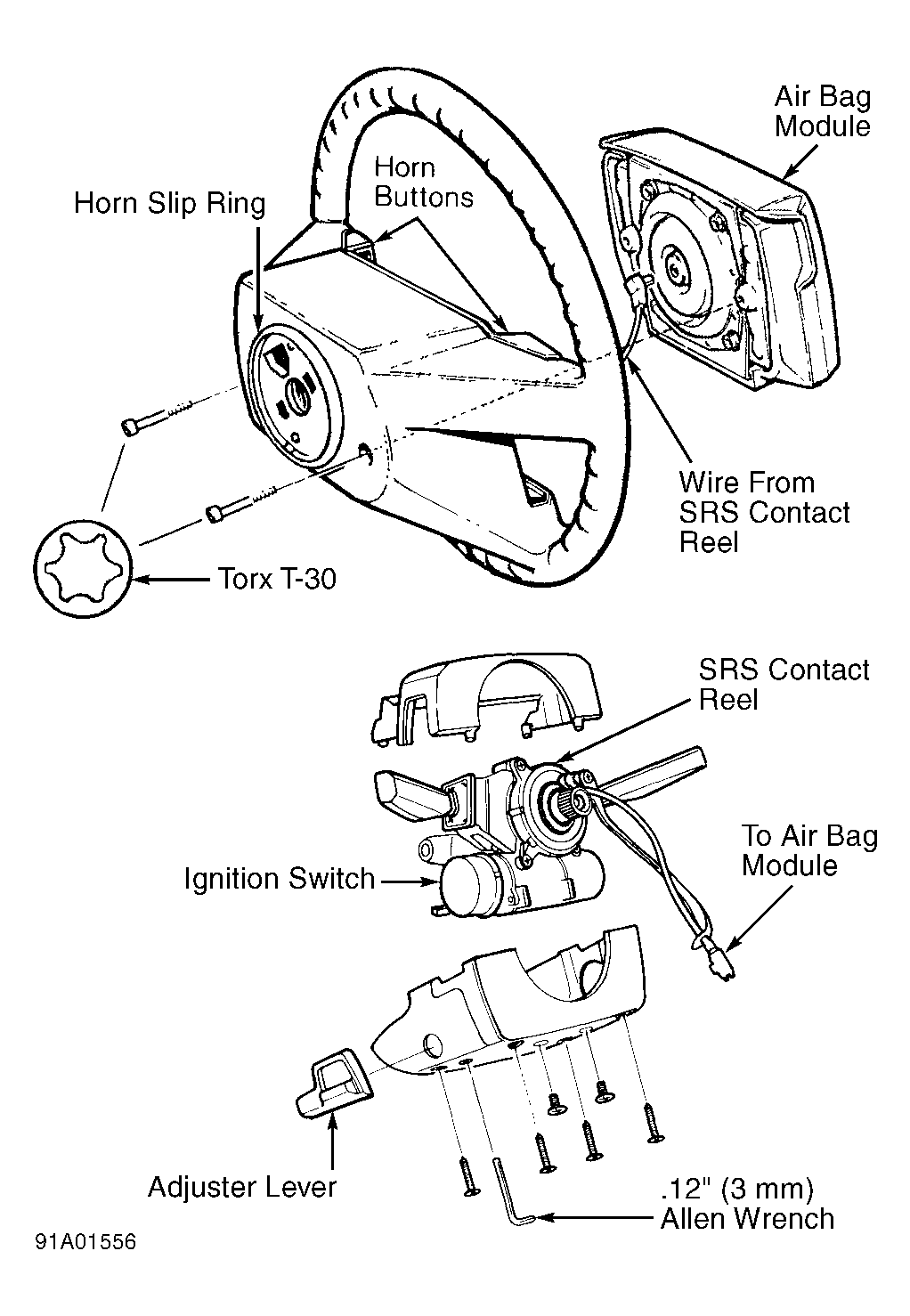

Fig 1: Removing Air Bag Module
G91A01556Courtesy of VOLVO CARS OF NORTH AMERICA

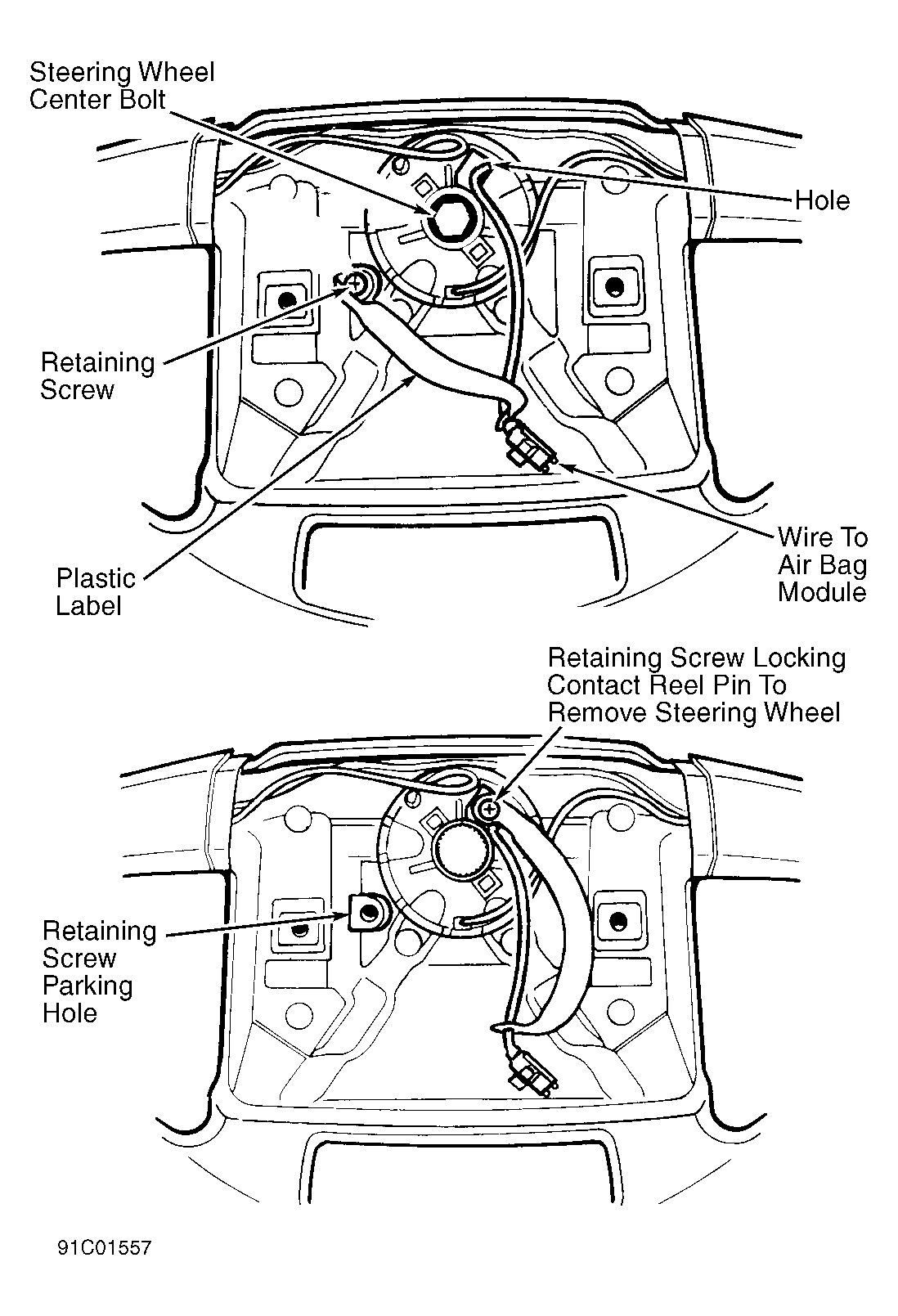

Fig 2: Removing Steering Wheel
G91C01557Courtesy of VOLVO CARS OF NORTH AMERICA
