Removal (C70, S70 & V70)

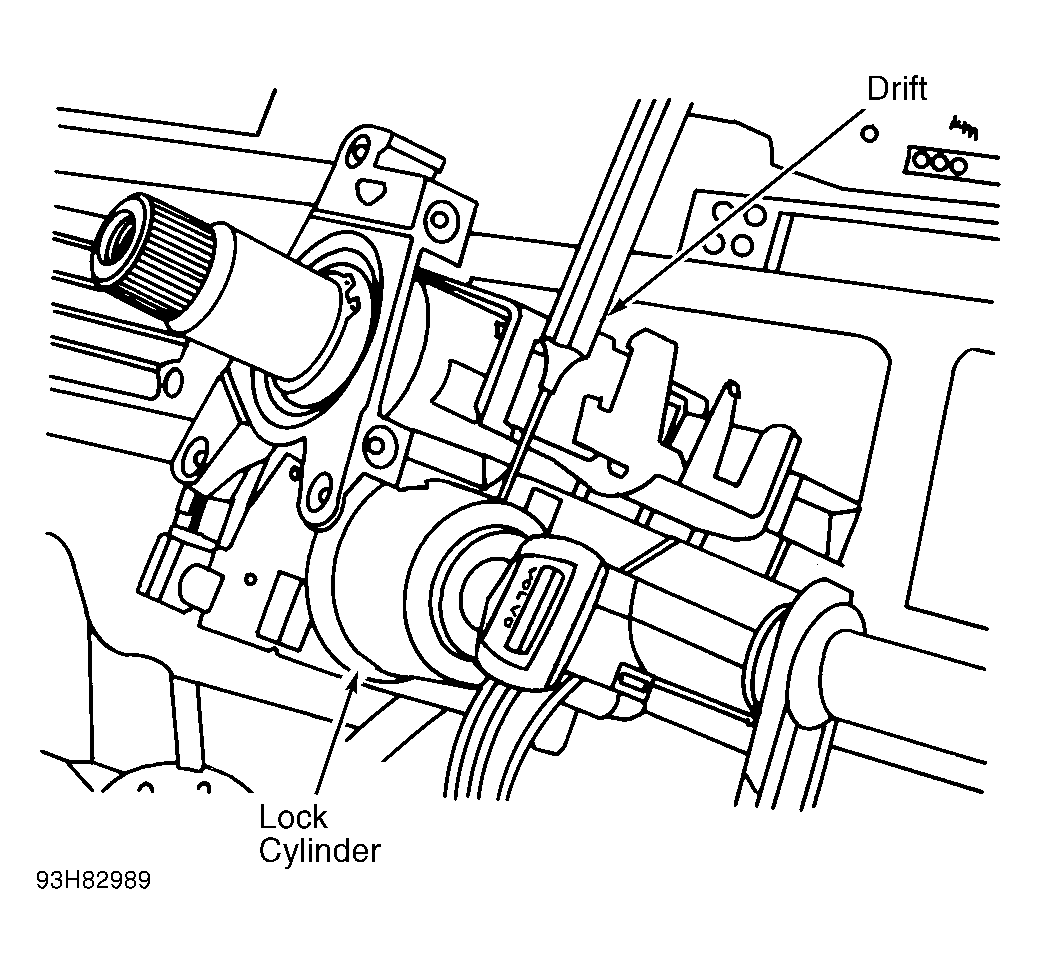

Disconnect negative battery cable. Lower steering wheel adjusting lever and pull steering wheel to highest position. Remove upper and lower steering column covers. Remove the lever for the windshield wiper. Insert ignition key in switch. Turn to position "I". Using a .079" (2-mm) drift, press lock cylinder lock lug down. See Figure . Remove lock cylinder.
