Removal & Installation (C70, S70 & V70)

Ensure steering wheel is in a straight-ahead position. Remove upper and lower steering column covers. Remove switch attaching screws. See Fig 1 . Disconnect switch harness connectors. Remove switch. To install, reverse removal procedure. Check turn signal switch canceling.

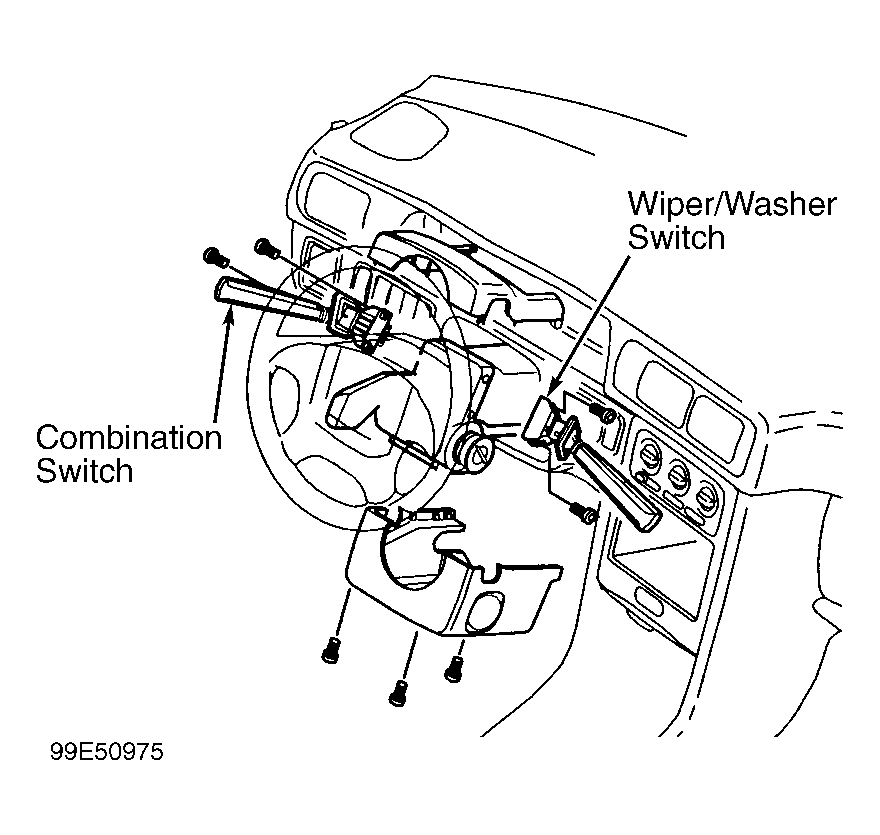

Fig 1: Removing Steering Column Covers & Switches
G99E50975Courtesy of VOLVO CARS OF NORTH AMERICA
