Removal & Installation
- Remove side defroster cover plate screws. Remove dash panel vents by rolling vents down and pulling out. Both vents and air duct on right side must be removed.

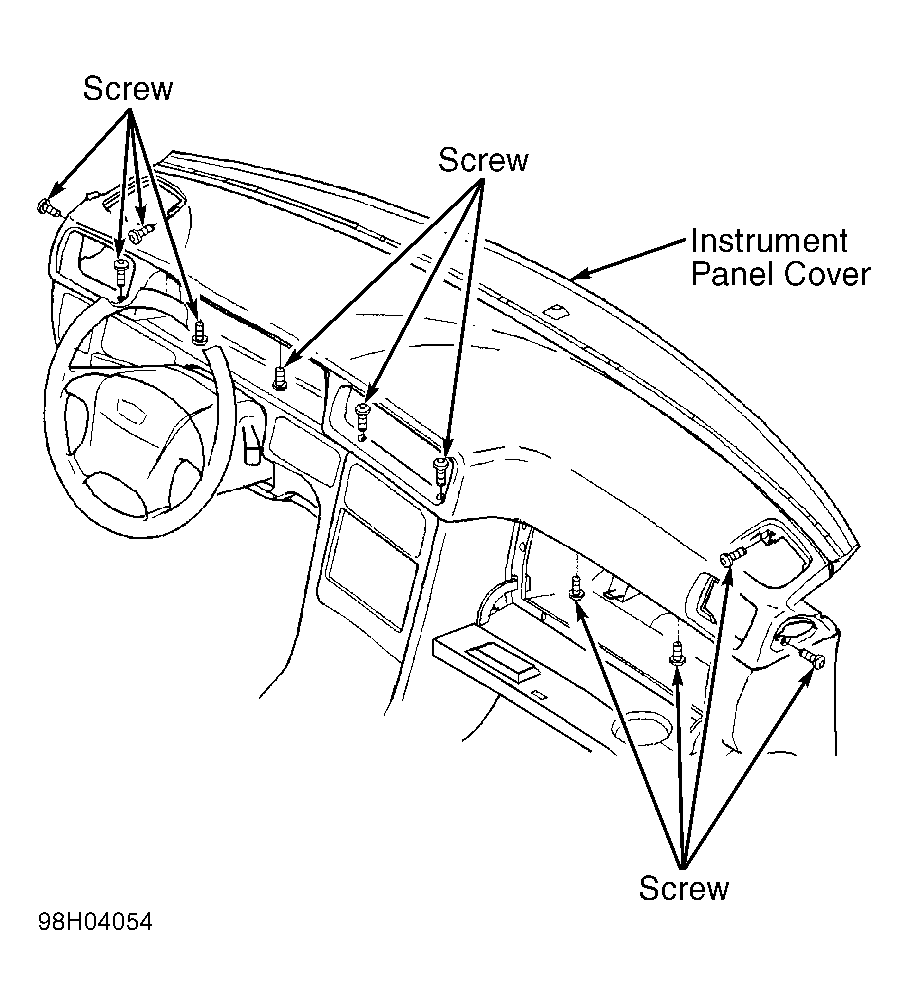

- Remove left and right side speakers. Remove 11 instrument panel cover screws and lift off instrument panel cover. See Fig 1 . To install, reverse removal procedure. Ensure hook on right side of instrument panel cover plate engages into upper frame section.
