Replacing the mode selector

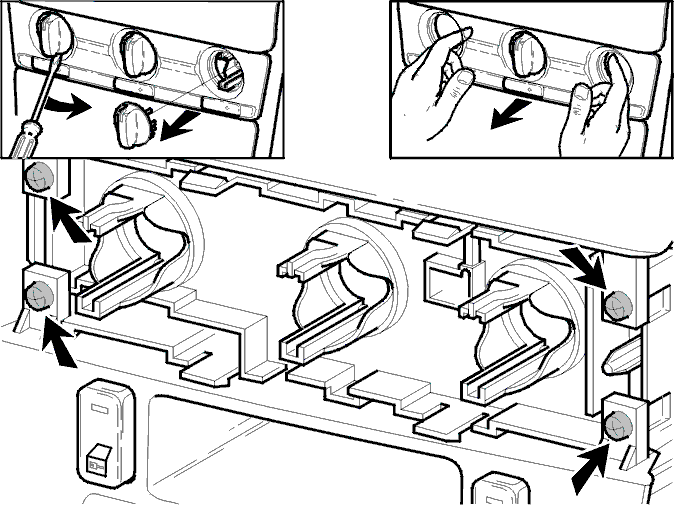

Fig 1: Removing Knobs From Heater Control And Inserting Small Screwdriver At Rear Edge Under Each Knob

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the knobs from the heater control by inserting a small screwdriver behind  the knob.
• Remove the front panel. (Insert your fingers into the opening. Pull carefully).
• Remove the four Torx mounting screws.

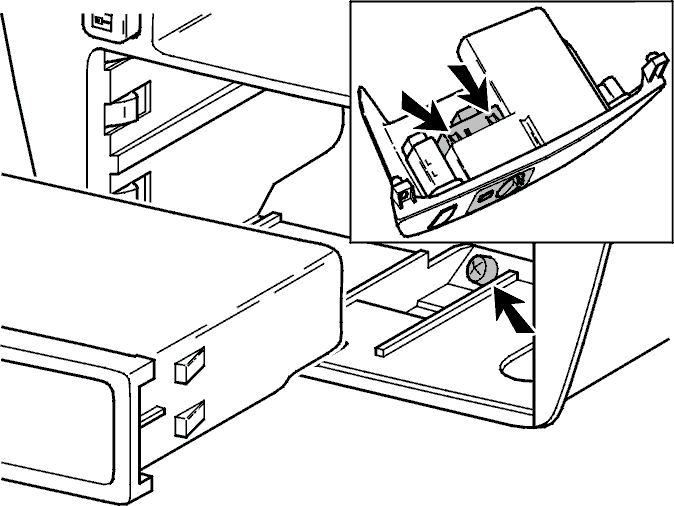

Fig 2: Removing Rear Section Of Bracket

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove the rear section of the bracket (carefully press the edge with a screwdriver).

• Remove the screw behind the rear section of the bracket. Pull the bracket forward slightly.
• Press in the retaining clips on the reverse of the switch.

Reinstall in reverse order.
