Checking the Adjustment Of the Boost Pressure Control (BPC) Valve
- Remove the heat shield from the exhaust manifold.

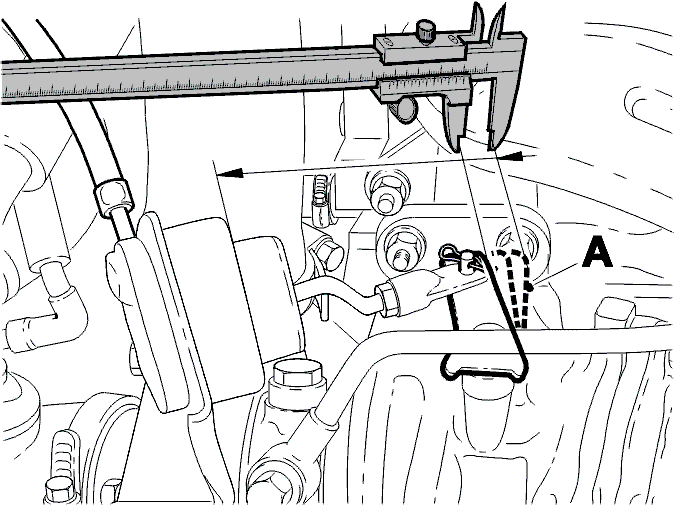

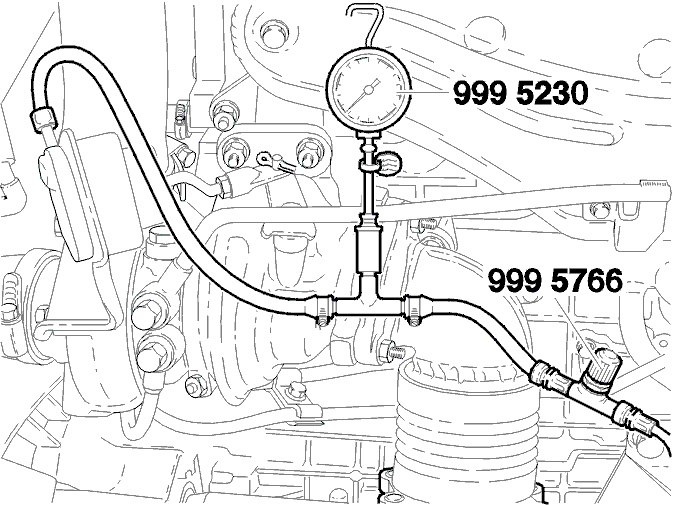

- Turn the setting screw on special tool 9995766 clockwise until the pressure in the table is reached. Measure the stroke length of the pressure servo. Use a vernier caliper
- The measured value represents the opening of the boost pressure control (BPC) valve, measured at the end of the lever (A).
NOTE:
Ensure that the valve is closed when the push rod is in the resting position.
| the length of stroke of the throttle spindle in mm | B4194T2 HP Manual transmission (kPa) |
B4204T5MT/AT/ B4194T2 HP Automatic transmission (kPa) |
B4204T2/T3 LP Manual/automatic transmission (kPa) |
(kPa) |
| 1 | 37 | 60 | 29 | 4 |
| 5 | 74 | 97 | 50 | 4 |
| > 7 | > 80 | > 100 | > 60 | - |
Only US
| Stroke length of the lever | B4204T2,T3 MT/AT USA only |
| 1 | 36 |
| 5 | 56 |
| 7 | 65 |
Adjust the pressure servo for the boost pressure control (BPC) valve if the values deviate from the above values. See Release the Push Rod For the Boost Pressure Control (BPC) Valve
