Measure the Basic Boost Pressure

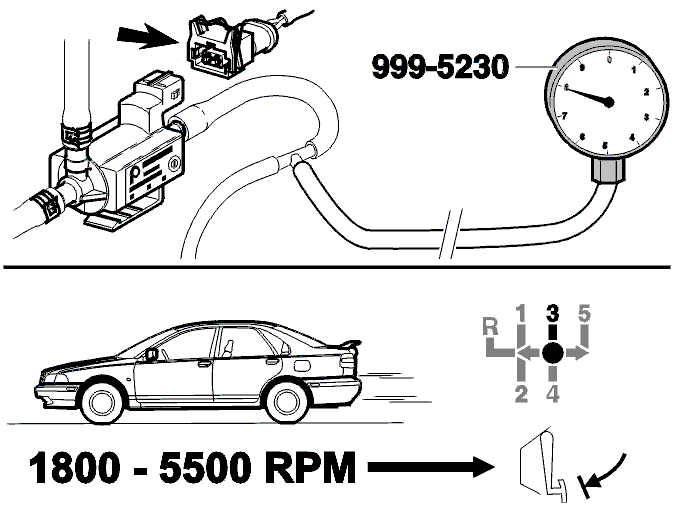

Fig 1: Measuring Basic Boost Pressure
GLL114844Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove the turbo control valve wiring connector and carry out the same test drive as when measuring boost pressure, see Measure the Boost Pressure .

NOTE: These values are the basic values in "limp home" mode.

If no repairs are required then continue with Remove the Special Tool
