Checking the Exhaust System For Leakage: Procedure

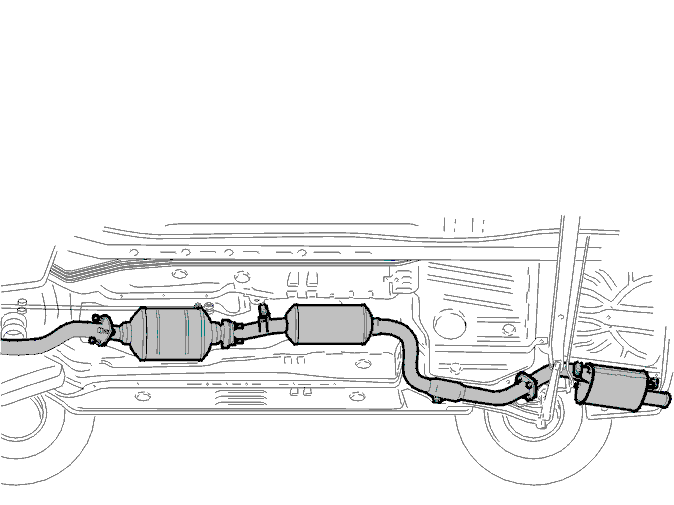

Fig 1: Identifying Exhaust System

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Check the exhaust system: Spraying a soap solution on all joints and the connections between the cylinder head and the rear heated oxygen sensor (HO2S).
• Only very small and slow bubbles are permissible.
