Rear window glue seam, check (S40 (-04))

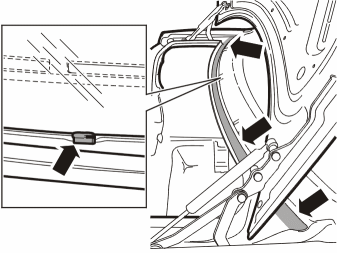

Fig 1: Rear Window Glue Seam

Courtesy of VOLVO CARS OF NORTH AMERICA.

Check:

• the seams, at the bottom of the rear windshield
• installation of the spacer clips for the rear window.

Remove the clips as necessary, apply sealing putty and refit the clips.

Use body putty to seal the openings. Apply and spread the sealing putty correctly.

Apply the original paint colour after the sealing putty has hardened.

Continue following Parts of the body, internal, sealing (S40 (-04)/V40) .
