Removing the bumper: Notes

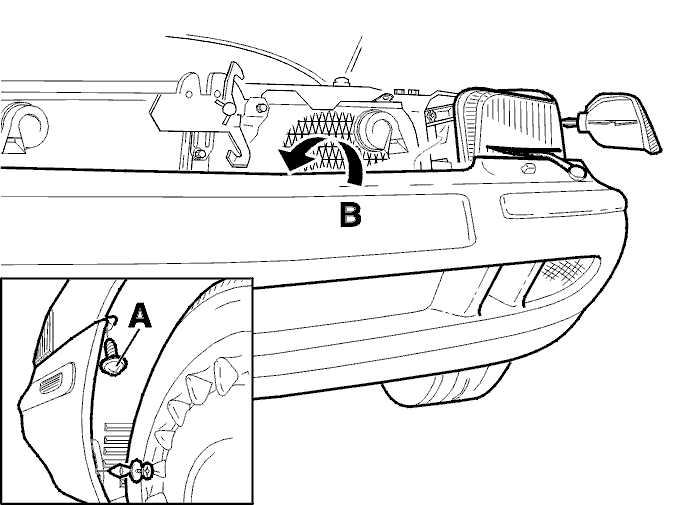

Remove:

• the right and left-hand turn signal lamps
• the screw (A) on the left and right-hand sides
• the clip (B) for the cable harness in the bumper.

If necessary remove:

• outside temperature sensor
• the coupling for the headlamp wiper
• the hose for the headlamp wiper by the T-coupling.

Remove the air baffle.

Remove the switch for the sidemarker lamp.

Remove the switch for the fog lamps.

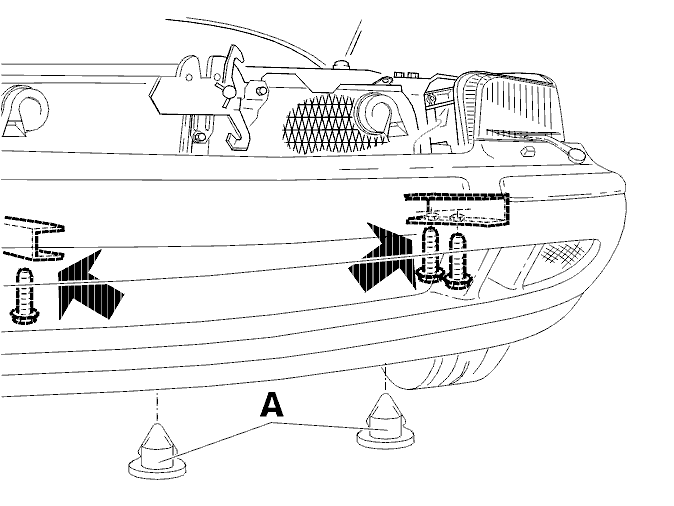

Remove:

• the two clips (A) on the bumper
• the four screws for the bumper
• the bumper.

If the car is equipped with headlamp wipers fold the headlamp wipers forward.
