IC (inflatable curtain): Installation

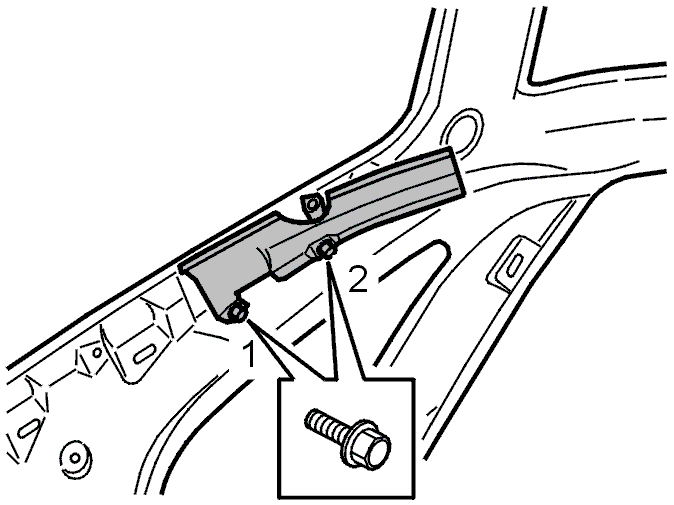

Fig 1: Removing/Installing Screws For Deflector & Deflector

Courtesy of VOLVO CARS OF NORTH AMERICA.

NOTE: If the inflatable curtain module is dropped, it must not be installed.

Install:

NOTE: The deflector on the C/D post must be installed before the inflatable curtain module is installed

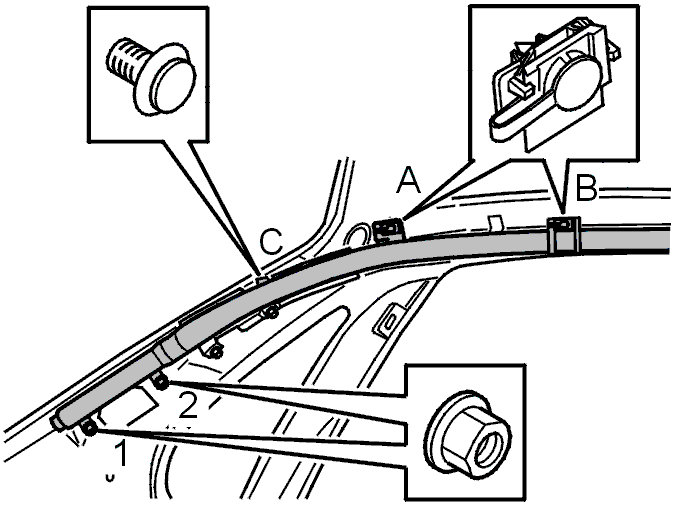

Fig 2: Removing/Installing Clips, Nuts & Inflatable Curtain

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install:

Remove the packaging by pulling it straight downwards.

NOTE: Ensure that no bits of paper remain.

Install:

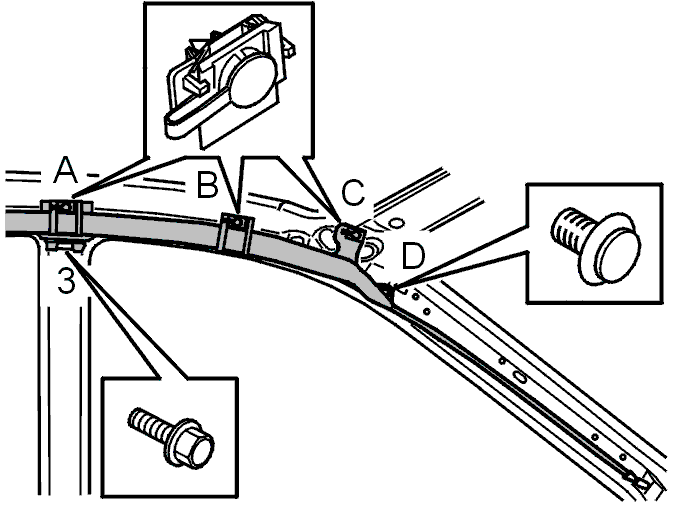

Fig 3: Inflatable Curtain Clips

Courtesy of VOLVO CARS OF NORTH AMERICA.

Hook on the IC (inflatable curtain). Install screw 3.

NOTE: It is very important that the hook is correctly installed.

Install clips A, B, C and D.

Tighten all screws. Tighten to 10 Nm .

Install:

CAUTION: When installing the IC (inflatable curtain), part of the decal on the curtain must be ripped off and stuck on the decal in the door opening.
