Install steering wheel module

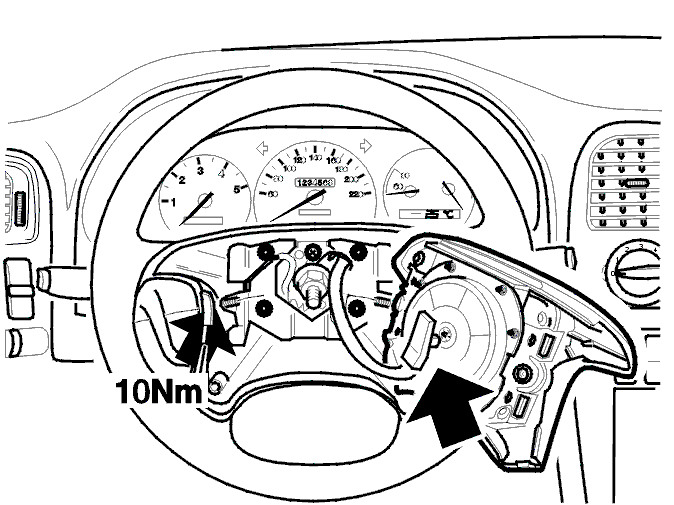

Fig 1: Installing Steering Wheel Module

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Remove special tool 9988695 .
• Turn the ignition key to position I so that the steering wheel lock is disengaged.
• Attach the connector to the steering wheel module.
• Install the steering wheel module in the steering wheel.
• Turn the steering wheel to access the screws. Tighten with 7 ft. lbf.

Check that:

• The steering wheel turns easily.
• The steering wheel lock functions correctly.
• The steering wheel module is properly secured.
