Installing the dashboard: Notes
NOTE:
Before installation: Check that all components are correctly installed.
NOTE:
Two people are required for this operation.

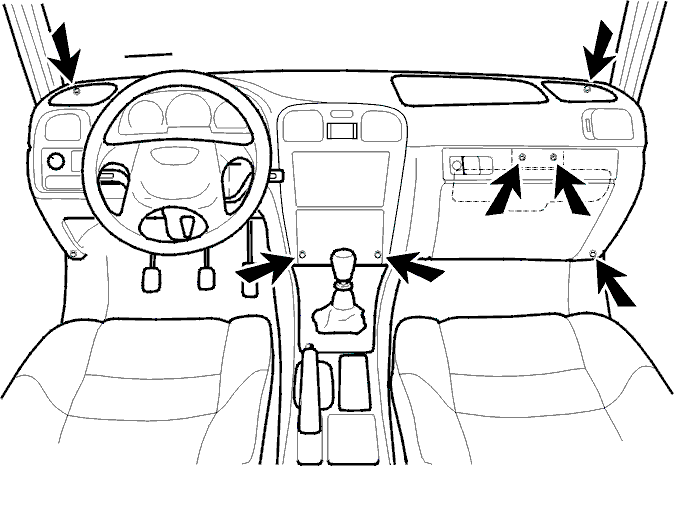

- Align the dashboard carefully.
Install:
- the upper screw by hand
- the screw for the passenger airbag module in the glove compartment
- the remaining screws.
Check the positioning of the dashboard.
Tighten the screw. Tighten to 12 Nm .
