Installing the ISOFIX
CAUTION:
Always use new screws and nuts when installing.
ISOFIX bracket (Right)
Position the ISOFIX against the backrest. Install new screws and washers (D).
Tighten the screws. Tighten to 18 Nm .
ISOFIX bracket (Left)
Position the ISOFIX against the backrest. Install new nuts (E), new screws and washers (F).
Tighten the nuts (E). Tighten to 22 Nm .
Tighten the screw (F). Tighten to 18 Nm .

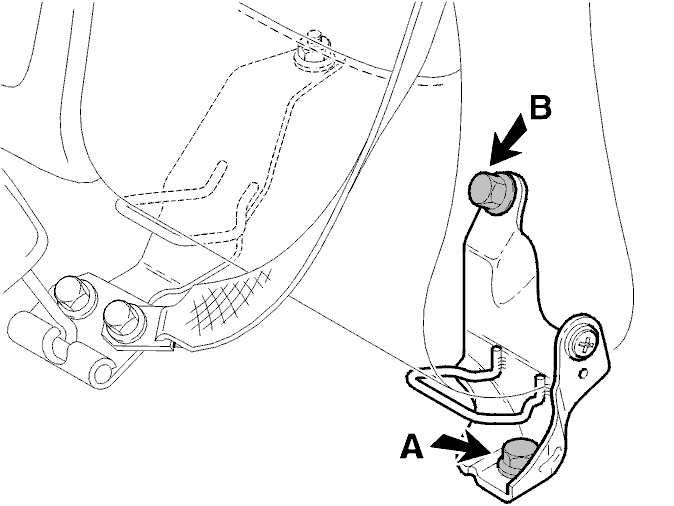

Install:
- the backrest using the screw (C). Tighten by hand
- the new screw (A). Tighten by hand
- the two new screws (B). Tighten by hand.
Tighten all the screws. Tighten to 22 Nm .
Install the fixed section of the rear seat.
Fold the seat cushion back into position.
