Diagnostic trouble code (DTC) information

Condition

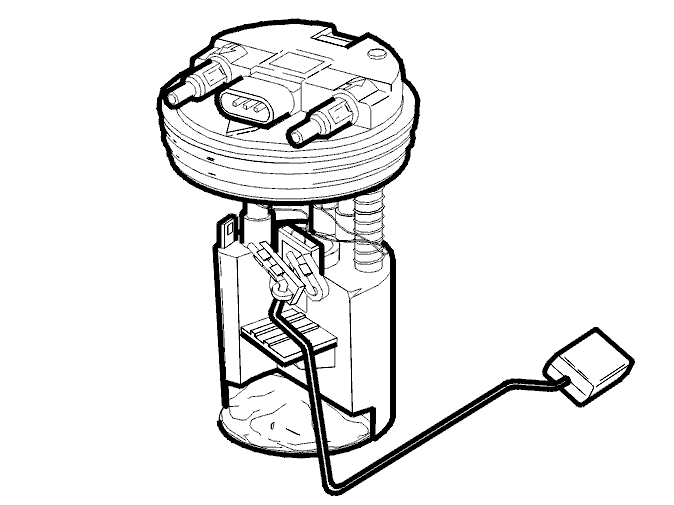

Fig 1: Identifying Fuel Pump

Courtesy of VOLVO CARS OF NORTH AMERICA.

Diagnostic trouble code (DTC) CI-02 is stored in the combined instrument panel if the combined instrument panel registers a fault in the signal cable from the fuel level sensor.

Substitute Value

None.

Possible Source

• short-circuit to supply voltage in the signal cable
• open-circuit in the signal cable or in the ground lead
• contact resistance in terminals
• defective fuel level sensor.

Fault symptom[s]

• the fuel gauge does not work
• the trip computer displays an empty fuel tank too early.
