Replacing Spring

Slacken off shock absorber from lower mounting. Pull off shock absorber from shaft journal and lower trailing arm

Remove:

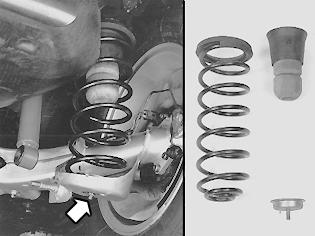

Fig 1: Identifying Spring Mounting Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Transfer spring rubber spacer, auxiliary spring and lower mounting to the new spring

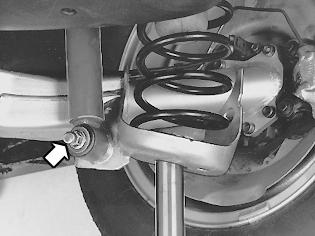

Fig 2: Identifying Spring Rubber Spacer, Auxiliary Spring And Lower Mount

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install the new spring

Locate the spring end in the trailing arm stamped section and locate the mounting washer guide pin in the hole on the trailing arm.

Install a new nut on the mounting washer. Tighten to 40 Nm .

Position a mobile jack under trailing arm and lift up

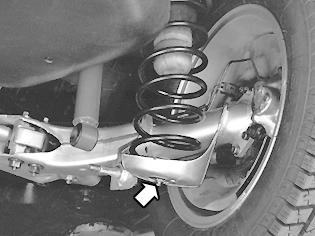

Fig 3: Press Up Trailing Arm

Courtesy of VOLVO CARS OF NORTH AMERICA.

Install shock absorber on lower mounting

CAUTION: Check that the spring is correctly positioned on the upper spring seat.

Tighten shock absorber nut to 80 Nm .
