Checking instrument lighting: Verification: Verification

HINT: After carrying out the repair check that the fault has been remedied.

Fig 1: Identifying Ignition Off Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Disconnecting Control Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off.
• Combined instrument disconnected
• Switch off all equipment that takes power from the battery (courtesy lighting, radio etc).

  Connect an ohmmeter between the battery negative terminal and:

  #15 (#A15)

  #17 (#A17) on the breakout box.

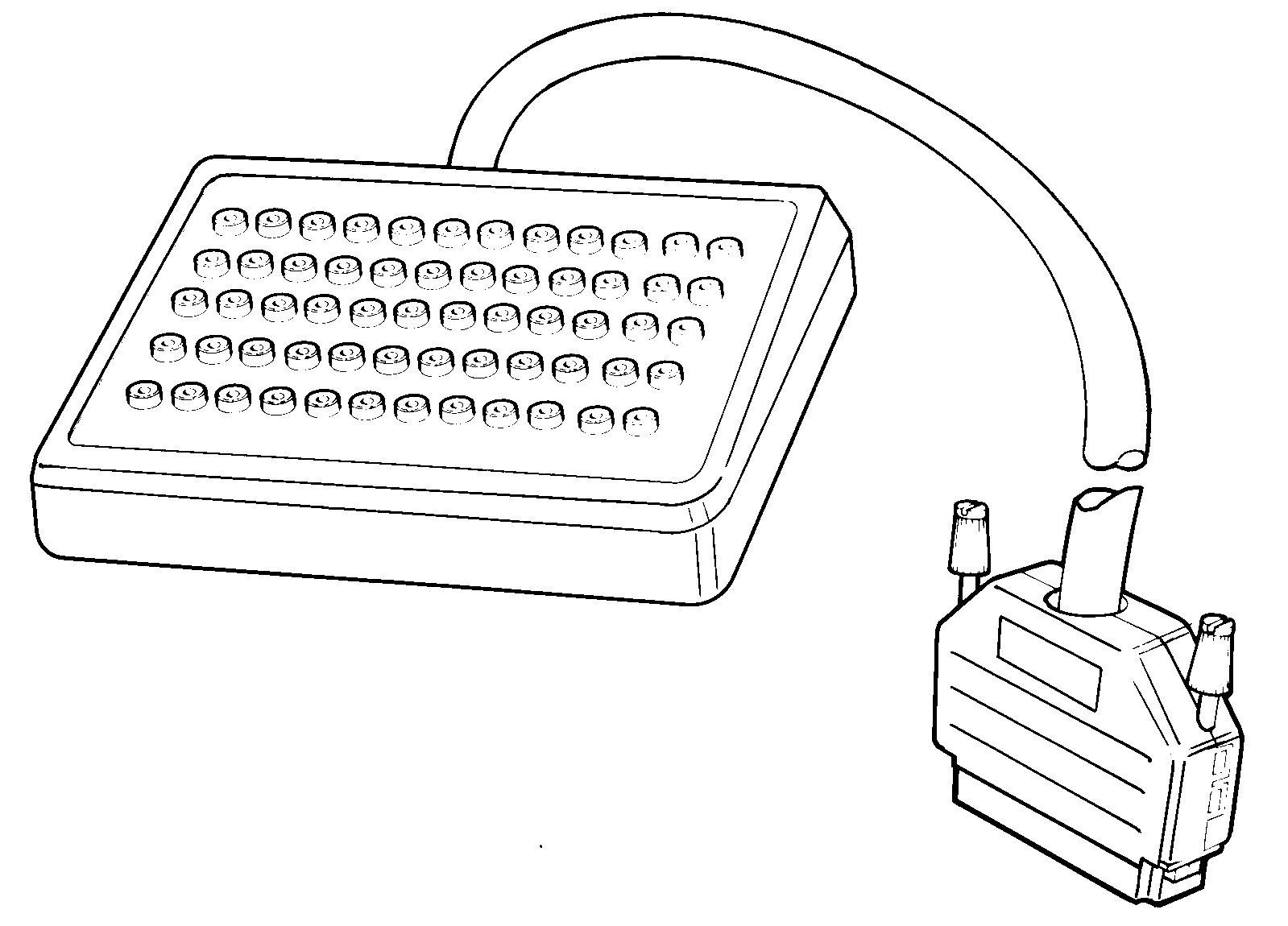

  Fig 3: Identifying Breakout Box

  Courtesy of VOLVO CARS OF NORTH AMERICA.
  Fig 4: Identifying Ohmmeter

  Courtesy of VOLVO CARS OF NORTH AMERICA.

The ohmmeter should read approx. 0 Ω for all readings

• OK

  Refer to Checking the voltage to the bulbs

• NOT OK

  Refer to Information

HINT: After carrying out the repair check that the fault has been remedied.

Fig 1: Identifying Ignition On Position

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Identifying Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 3: Connecting Control Unit

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Ignition off.
• Reinstall connectors, components etc.
• Connect combined instrument panel.
• Ignition on.
• Switch on headlamps.
• Set the instrument lighting rheostat to maximum.
  Fig 4: Identifying Light Switch And Indicator Lamps

  Courtesy of VOLVO CARS OF NORTH AMERICA.

Does the instrument lighting light?

• YES

  VERIFIED:  Troubleshooting has been completed.

• NO

  Refer to Information
