Checking link rod

Check that the throttle spindle is in contact with the adjustment screw when the throttle pulley is in contact with the idling stop.

1. 1.  The throttle spindle is in contact with the adjustment screw.
2. 2.  There is an air leakage.

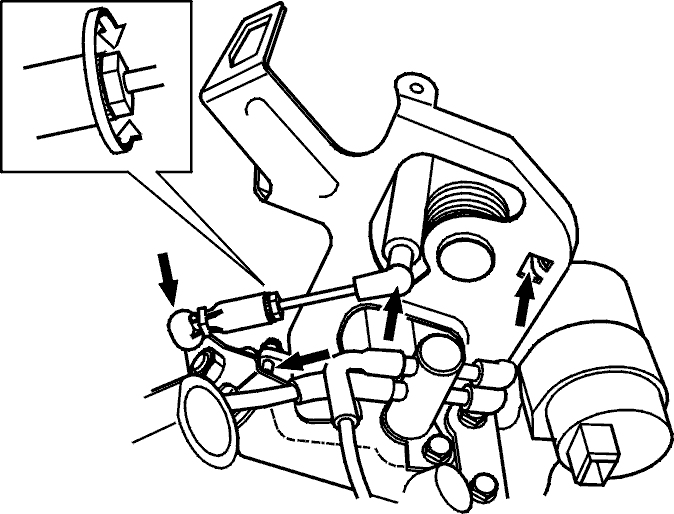

Fig 1: Checking Link Rod

Courtesy of VOLVO CARS OF NORTH AMERICA.

Select one of the above alternatives.

• 1

  Refer to Replacing component

• 2

  Refer to Fault-tracing information
