Applying hot adhesive

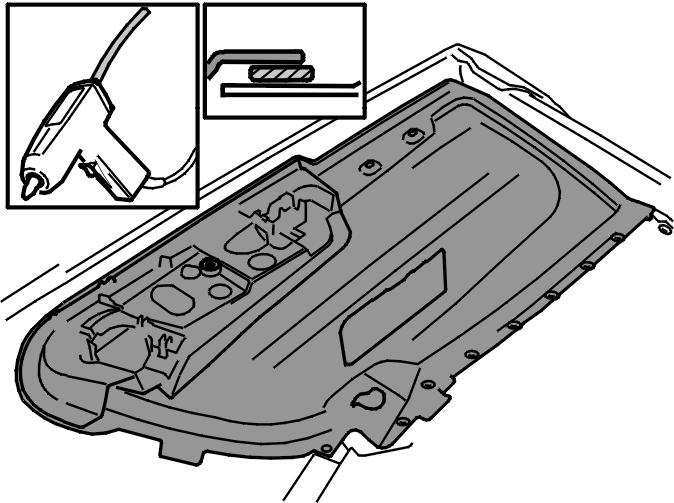

Fig 1: Applying Hot Adhesive To Mating Surface Of Door Panel
GLL127432Courtesy of VOLVO CARS OF NORTH AMERICA.

Apply hot adhesive to the mating surface of the door panel for the panel insert. Apply adhesive in those places where the insert has come loose.
