Location of insulation and seals

Seals should be positioned as follows to prevent noise. The seals are marked in gray.

Use the type indicated in the illustration.

Only methods for corrective action against noise are described.

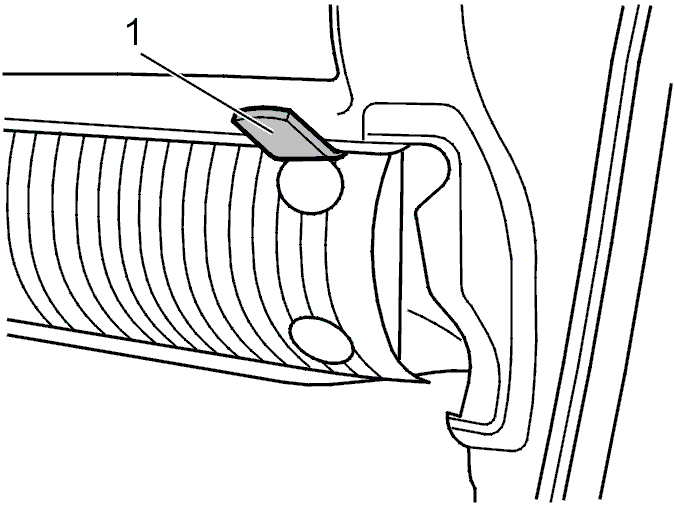

Fig 1: Identifying Insulation And Seals

Courtesy of VOLVO CARS OF NORTH AMERICA.

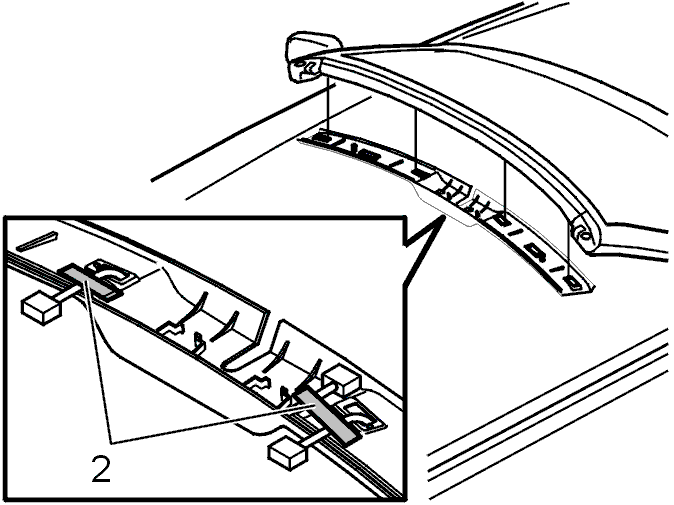

Fig 2: Identifying A-Post

Courtesy of VOLVO CARS OF NORTH AMERICA.

Location on the A-post.

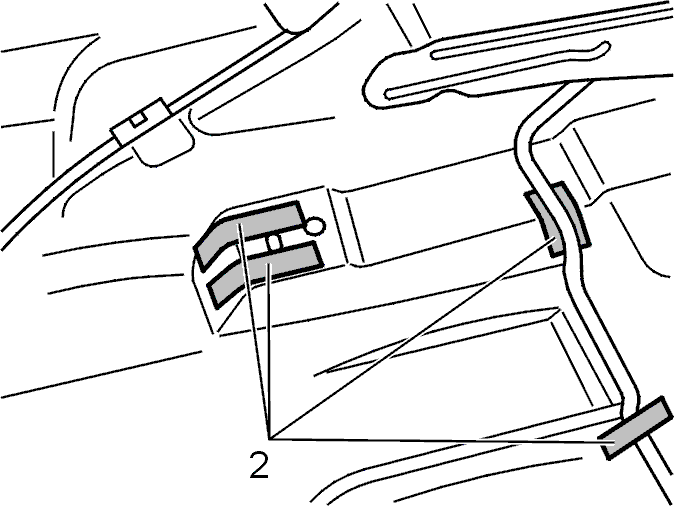

Fig 3: Identifying Soundproofing Panel And Glove Compartment

Courtesy of VOLVO CARS OF NORTH AMERICA.

Soundproofing panel, glove compartment.

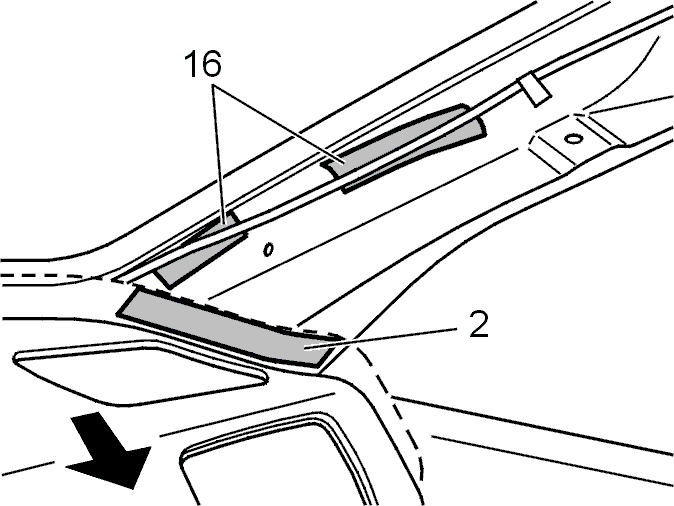

Fig 4: Identifying Locations Of Insulation And Seals (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

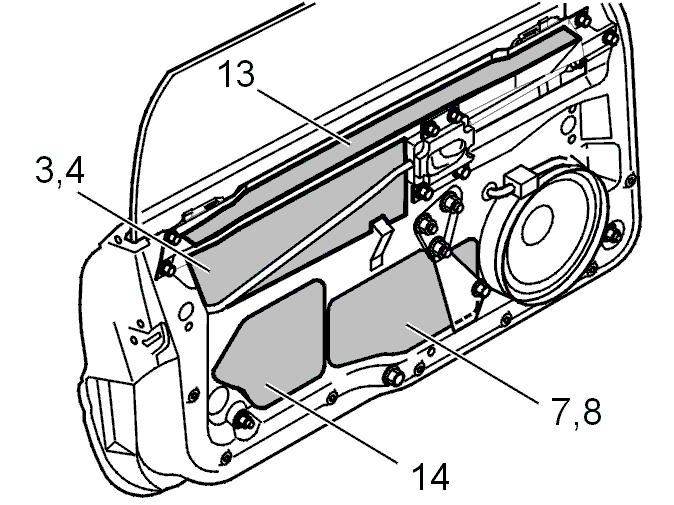

Fig 5: Identifying Locations Of Insulation And Seals (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

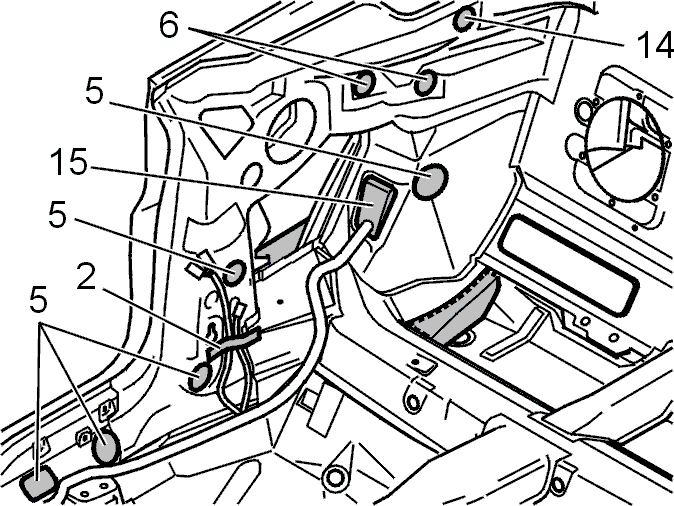

Fig 6: Identifying Locations Of Insulation And Seals (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Floor/seat mounting.
