Replacing front seat head restraint

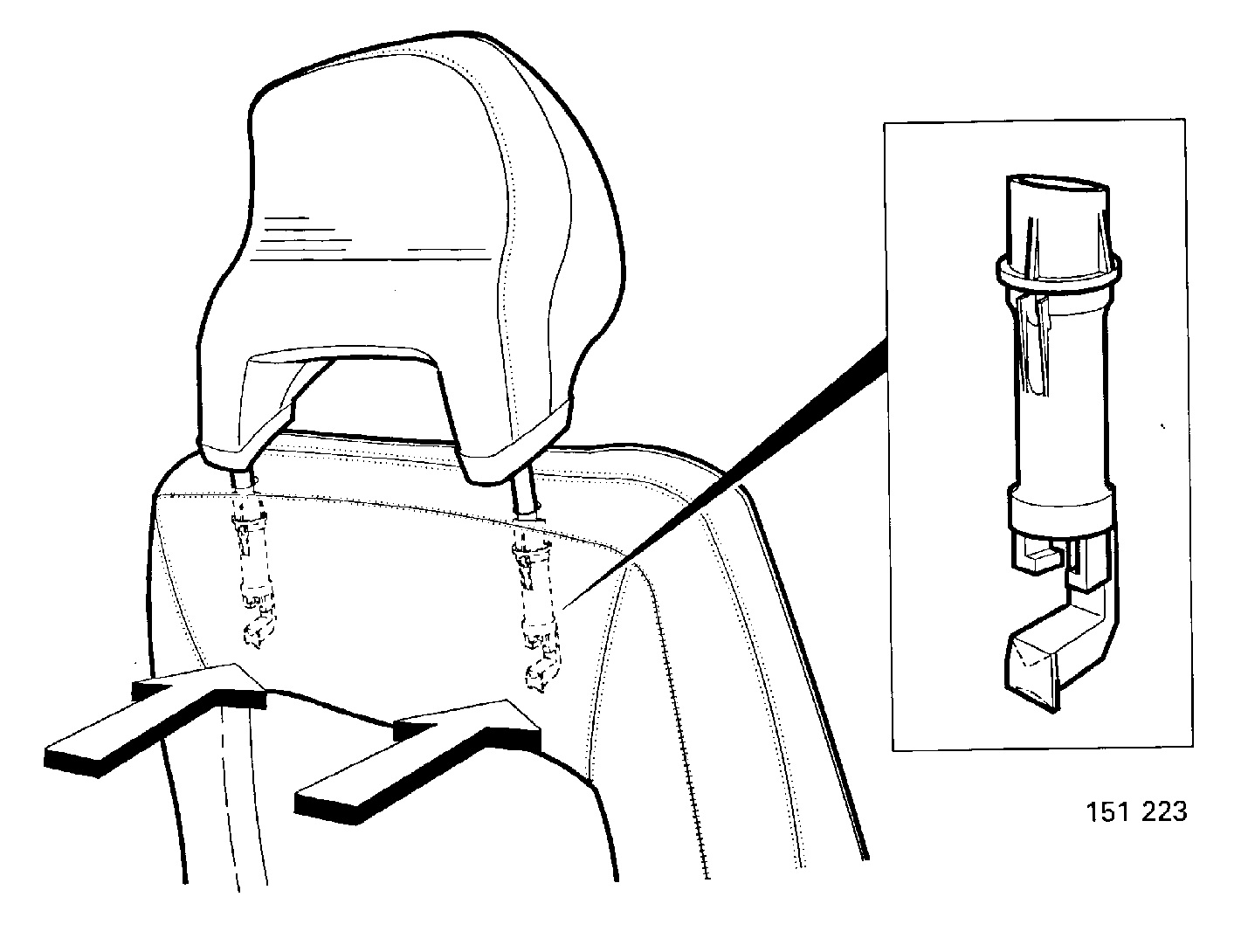

Fig 1: Replacing Front Seat Head Restraint
GLL121915Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

Press your thumb just under the frame (holes inside the upholstery) on the back of the backrest

Pull head restraint straight up at the same time

Install:

Insert the head restraint into the bushings so that the catches engage.
