Replacing the headlamp wiper arm: Removal

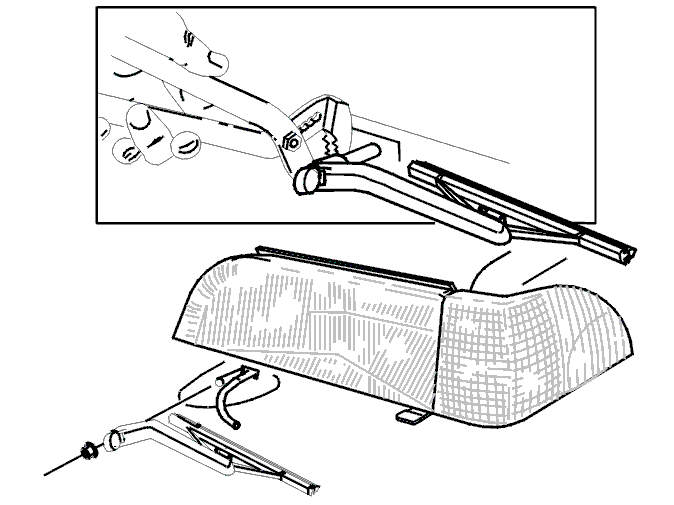

Fig 1: Identifying Headlamp Wiper Arm And Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Ignition off.

Push the cover to one side at the mounting on the wiper arm.

Slacken off the nut, then screw the nut in a few turns to protect the thread on the wiper mechanism spindle.

Remove:

• the wiper arm from the wiper arm mechanism spindle by supporting the nut with a pipe wrench and pressing off the arm
• the nut
• the arm
• the washer hose from the wiper arm.
