Removing windshield wiper arm

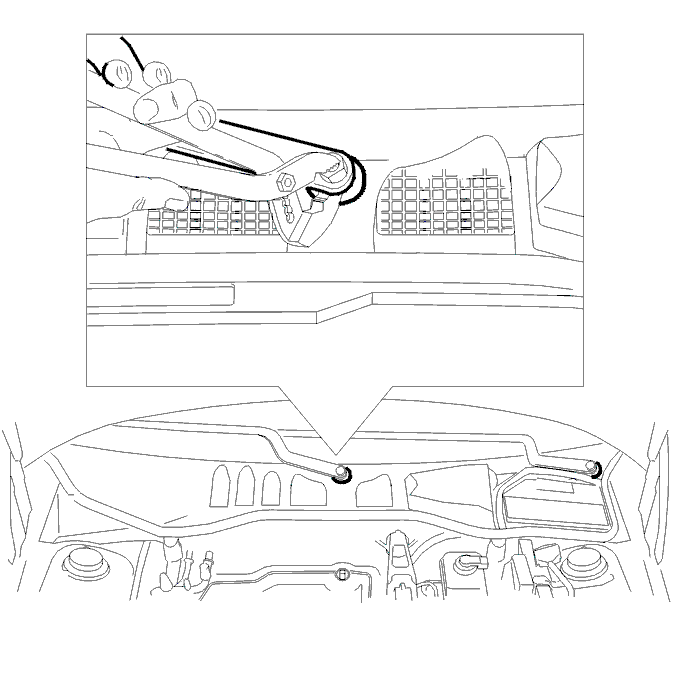

Fig 1: Identifying Windshield Wiper Nut

Courtesy of VOLVO CARS OF NORTH AMERICA.

Remove:

• nut, unscrew a few turns to protect the thread on the wiper mechanism spindle.
• wiper arm from wiper arm mechanism by supporting a pipe wrench on the nut and pressing off the arm.

Remove:

• nut.
• wiper arm
