Removing center console

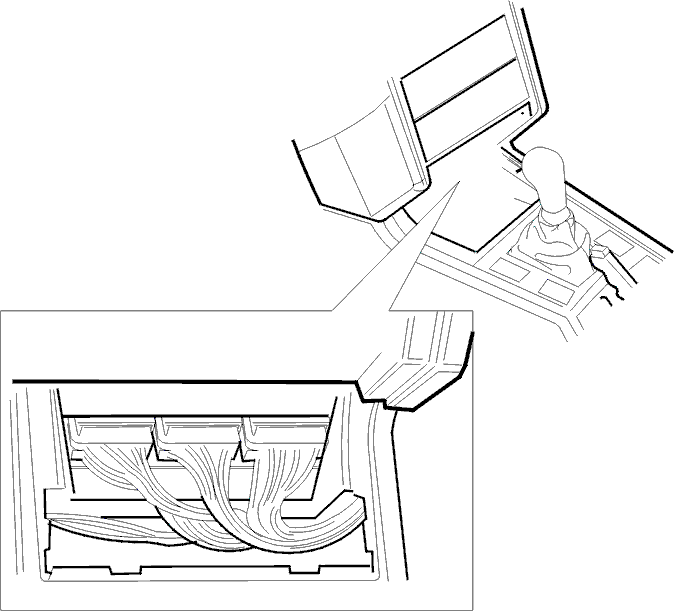

Fig 1: Identifying Center Console Connectors

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Disconnect connectors at the front of the center console.

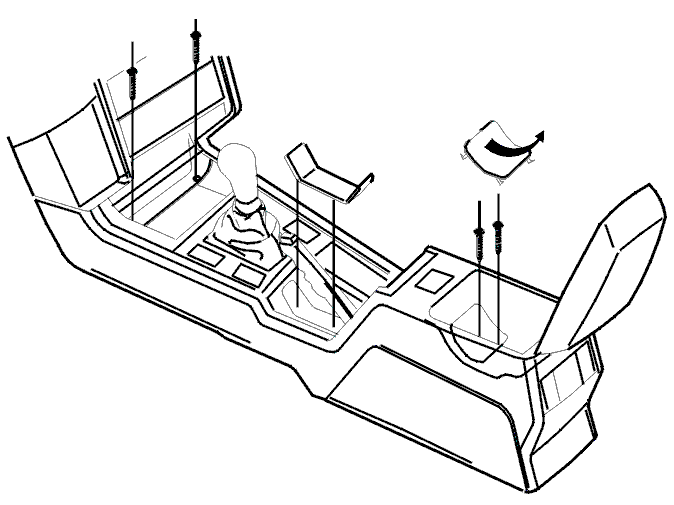

Fig 2: Identifying Handbrake Opening Cover And Panel In Center Console Locker

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Apply the handbrake and move the gear shift to neutral.

Remove

• Screws (2 x Torx 15) from front of the center console.
• Handbrake opening cover.
• Panel in the center console locker.
  NOTE:

  Undo the back of the panel first.

• Screws (2 x Torx 20) under the panel in the center console locker.

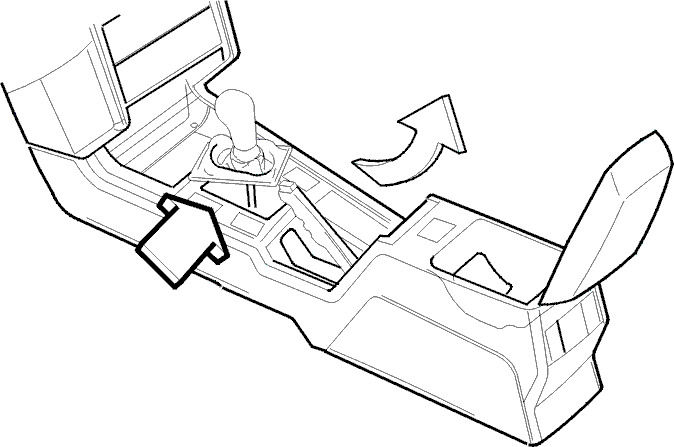

Fig 3: Identifying Center Console And Gear Shifter

Courtesy of VOLVO CARS OF NORTH AMERICA.

• Carefully lift the center console and move it back a little at the same time.
  NOTE:

  If the car has a manual gearbox the gear shift gaiter must be freed from the center console before the center console is removed.
