Removal & Installation (C70, S70 & V70)

Disconnect negative battery cable. Remove 12 cover panel screws holding instrument panel. See Fig 1. Disconnect 2 instrument cluster connectors by releasing spring catches on upper edge of cluster. See Fig 2. To install, reverse removal procedure.

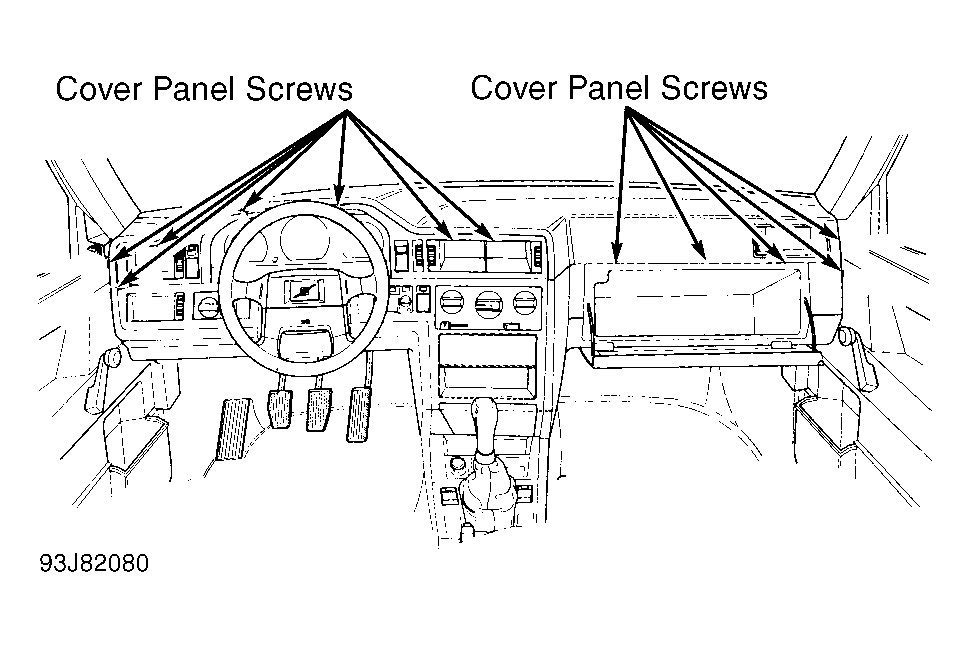

Fig 1: Removing Cover Panel Screws (C70, S70 & V70)

Courtesy of VOLVO CARS OF NORTH AMERICA.

Fig 2: Removing Instrument Cluster (C70, S70 & V70)

Courtesy of VOLVO CARS OF NORTH AMERICA.
