Description & Operation
WARNING:
Deactivate air bag system before performing any service operation. See AIR BAG RESTRAINT SYSTEMS article. DO NOT apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.

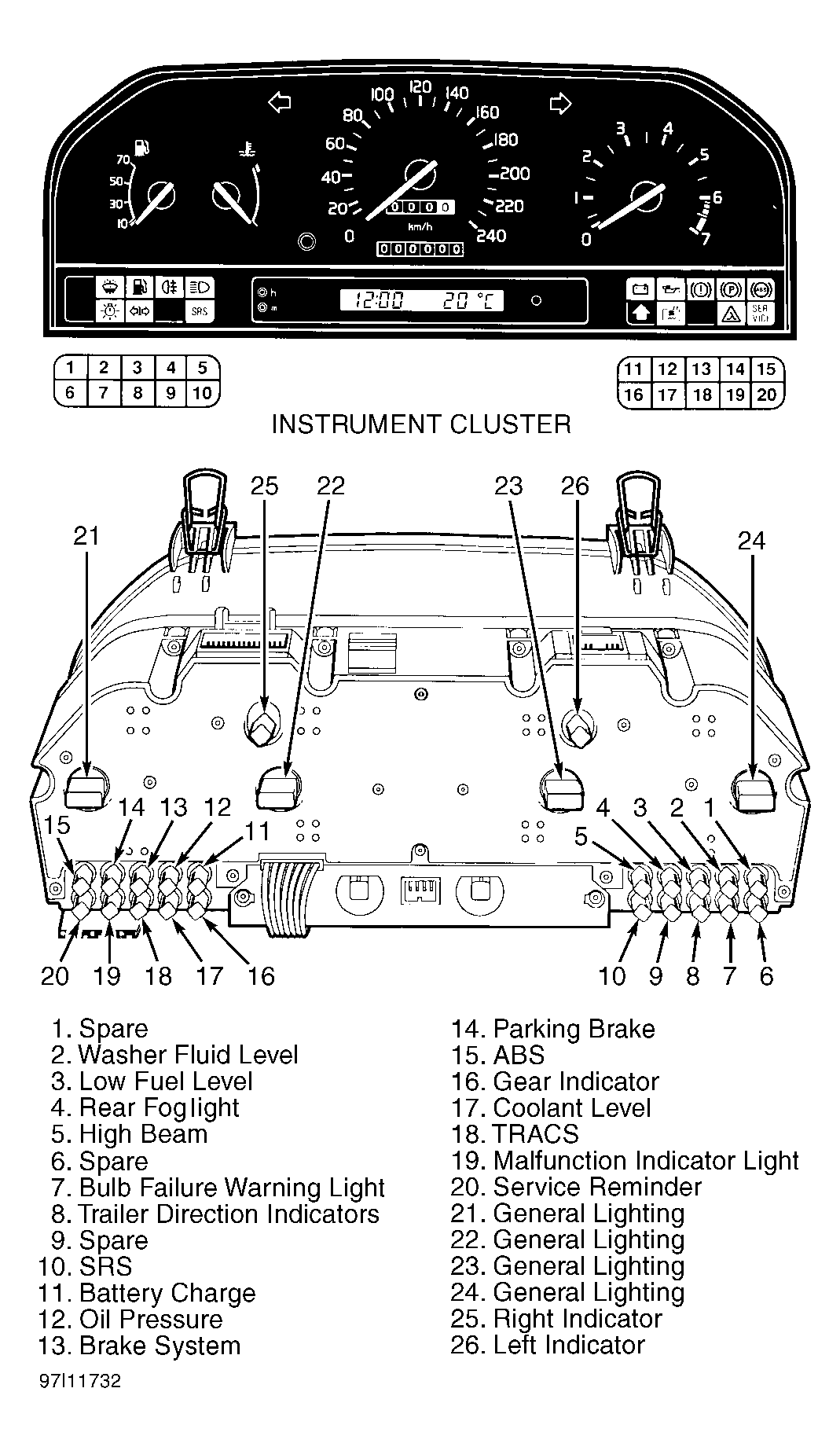

All models are equipped with an analog gauge instrument cluster which is either a Yazaki or VDO type. See Fig 2. Speedometer is centrally located with a tachometer and clock installed on either side. Smaller gauges for coolant temperature and fuel are at opposite sides of instrument cluster. If equipped, a turbo pressure gauge is incorporated in instrument cluster. A warning/telltale light bar at bottom of cluster panel displays additional information. C70, S70 and V70 VDO instrument cluster is equipped with self-diagnostic capabilities. See Fig 1. C70, S70 and V70 Yazaki and all S90 and V90 instrument clusters do not have self-diagnostic capabilities.
