| Anti-Roll Bar Left Side Forward Bolt |
37 (50) |
| Anti-Roll Bar Left Side Rear Bolt |
66 (90) |
| Anti-Roll Bar Right Bolt |
37 (50) |
| Anti-Roll Bar-To-Trailing Arm Nut |
37 (50) |
| Caliper Bolt |
44 (60) |
| Hub Axle Nut |
88 (120) |

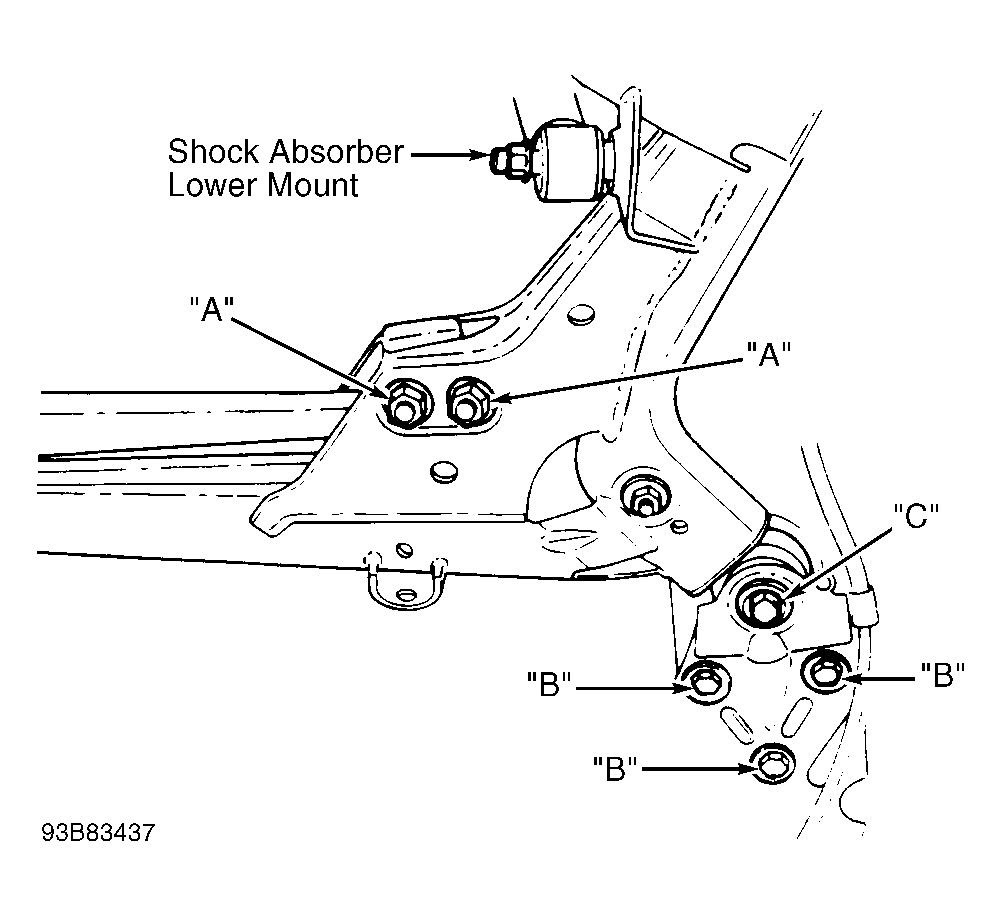

| Rear Axle Link |
| Bolt "C" |
77 (105) |
| Bolt "B" |
48 (65) |
| Bolt "A" |
48 (65) |
| Seat Catch Pin Bolt |
14 (20) |
| Shock Absorber Lower Mount Nut |
59 (80) |
| Shock Absorber-To-Body Bolt |
18 (25) |
| Shock Absorber-To-Upper Mount Nut |
| Standard Shock |
30 (40) |
| Nivomat Shock |
59 (80) |
| Spring Lower Nut |
37 (50) |
| Trailing Arm Bolt |
59 (80) |
| Transverse Arm Mount-To-Trailing Arm Nut |
37 (50) |
| Wheel Bolt |
81 (110) |
| INCH Lbs. (N.m) |
| Disc Rotor Guide Pin |
84 (10) |
