Component Locations

WARNING: This page is about a different car, the 1996 Volvo 850. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Motronic 4.4 Electronic Control Module (ECM) is located in right front of engine compartment, in front of strut tower.

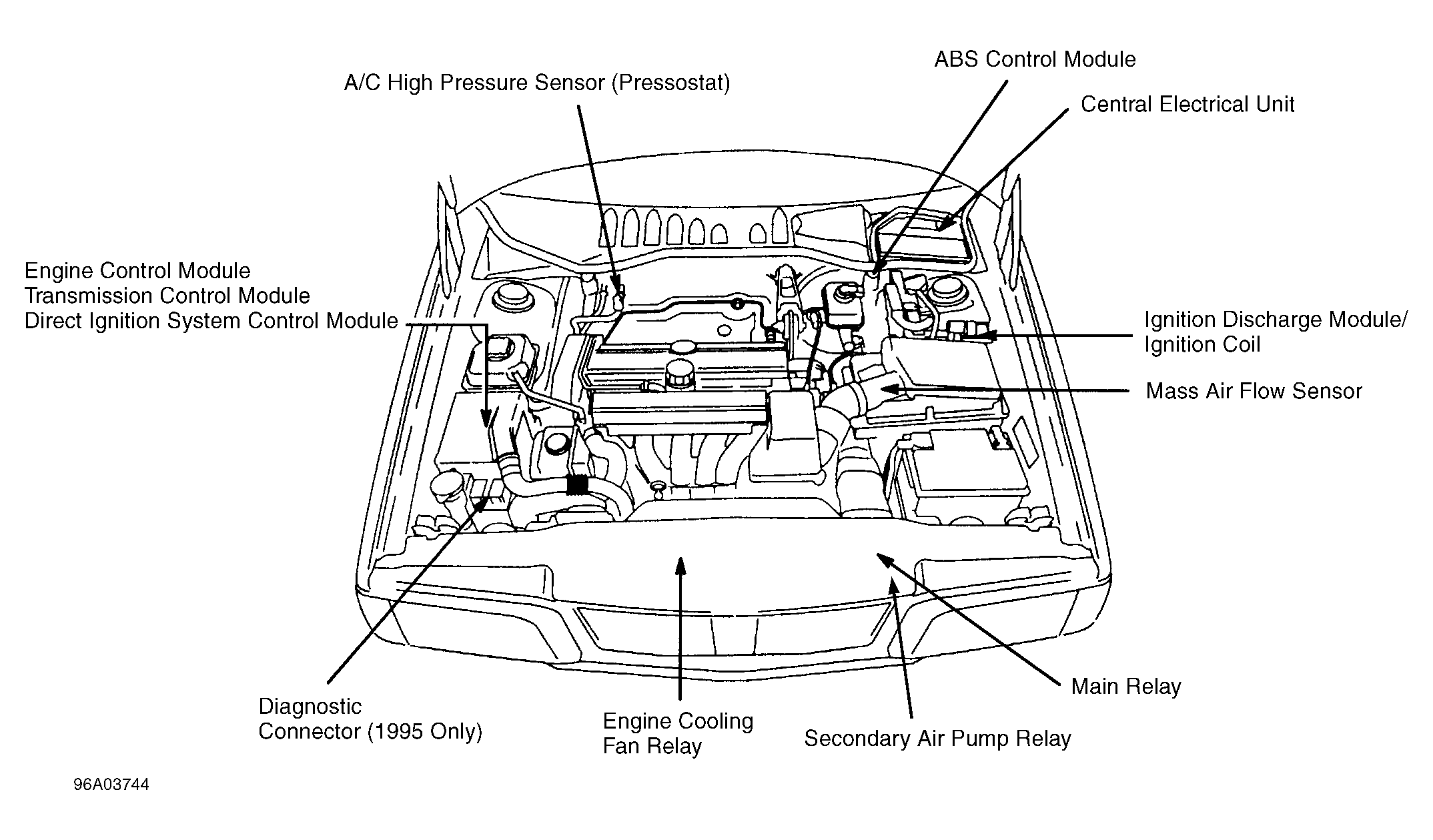

Fig 1: Identifying Underhood Motronic 4.4 Components

Courtesy of VOLVO CARS OF NORTH AMERICA.
