On-Board Diagnostics (1996 Models)

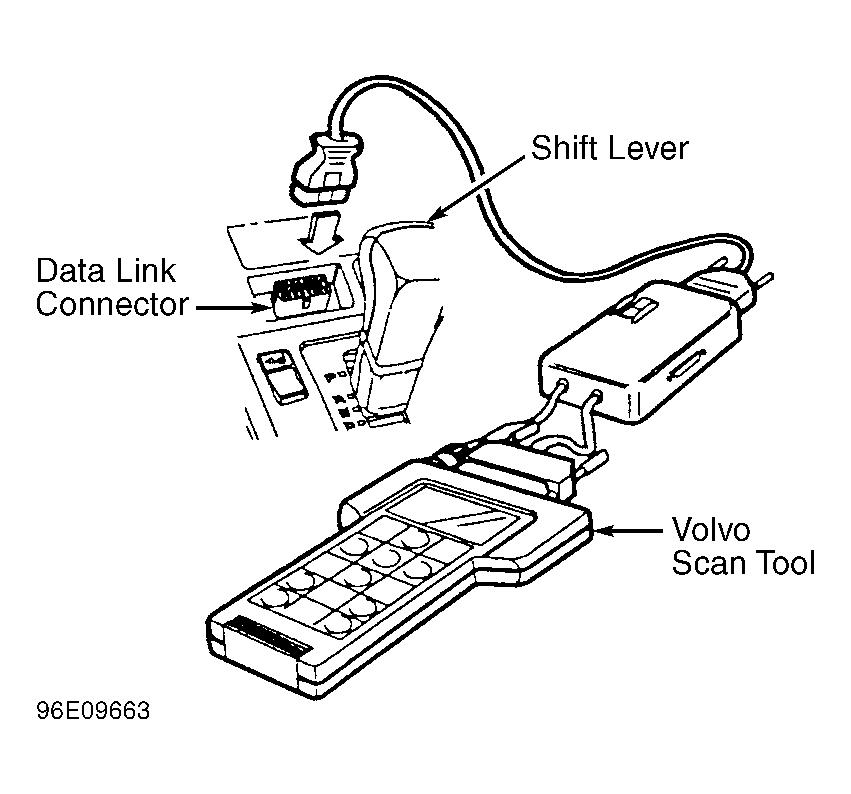

- Turn ignition off. Connect memory cassette to Volvo Scan Tool (998-8686-3). Connect scan tool to Data Link Connector (DLC) in console in front of gear selector. See Fig 1 . Turn ignition on. Turn scan tool on. Select language, vehicle model and year.
- Select function group and system. Select DIAGNOSTIC TEST to read and erase Diagnostic Trouble Codes (DTCs), as well as to activate components. Select READ DTC to read DTCs, status, and freeze values. Select ERASE DTC to erase stored DTCs and freeze values. See the INSTRUMENT CLUSTER DIAGNOSTIC FAULT CODES (1996) .
INSTRUMENT CLUSTER DIAGNOSTIC FAULT CODES (1996)
| Code | Problem |
|---|---|
| CI-112 | Fuel Level Sensor/Short Circuit To Ground |
| CI-113 | Fuel Level Sensor/Signal Interrupted |
| CI-114 | Fuel Level Sensor/Signal Faulty |
| CI-121 | ECT Signal/Signal Faulty |
| CI-123 | Incorrect 48-Pulse Signal |
| CI-124 | Engine Speed Signal/Signal Faulty |
| CI-131 | Incorrect 12-Pulse Signal |
| CI-132 | Engine Speed Signal/Signal Absent |
| CI-133 | Tank Signal To Trip Comp./Short Circuit |
| CI-141 | 12-Pulse Signal/Short Circuit |
| CI-143 | 48-Pulse Signal/Short Circuit |
| CI-211 | D+/Signal Absent |
| CI-221 | Speed Signal/Signal Absent |
| CI-222 | Fuel Level Sensor/Short Circuit |
| CI-231 | Control Module Fault |
