Timing Belt: Installation

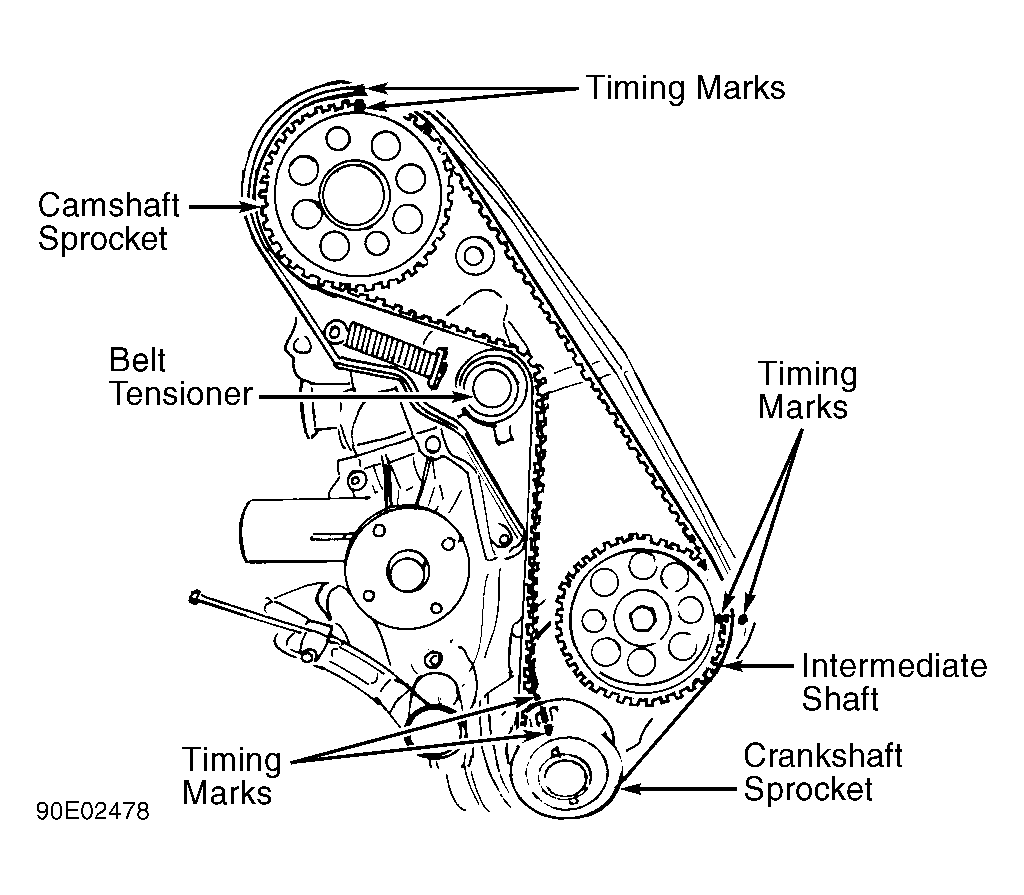

- Install belt tensioner if previously removed. Ensure all timing marks are aligned. See Fig 1.
- Timing belt has 2 lines on outer side of belt which should fit toward crankshaft marks. Install belt over crankshaft sprocket first, then over intermediate shaft. Stretch belt on tension side and fit over camshaft sprocket. Slide back of belt onto belt tensioner.
- Loosen nut on belt tensioner to permit spring tension to act against drive belt. Tighten belt tensioner nut. Ensure all timing marks are aligned. To install remaining components, reverse removal procedure.CAUTION: Timing belt must be readjusted once engine has reached normal operating temperature.
- Operate engine to normal operating temperature. Remove plug from front timing belt cover. Loosen belt tensioner bolt one turn and allow belt tensioner spring to apply pressure on timing belt. This will readjust timing belt to allow for belt stretch. Tighten belt tensioner nut. Install rubber plug.
