Removal (DL, GL & Turbo)
- Remove center console rear ash tray and loosen parking brake cable adjusting nut until cables are slack. Raise and support rear of vehicle and remove wheels.

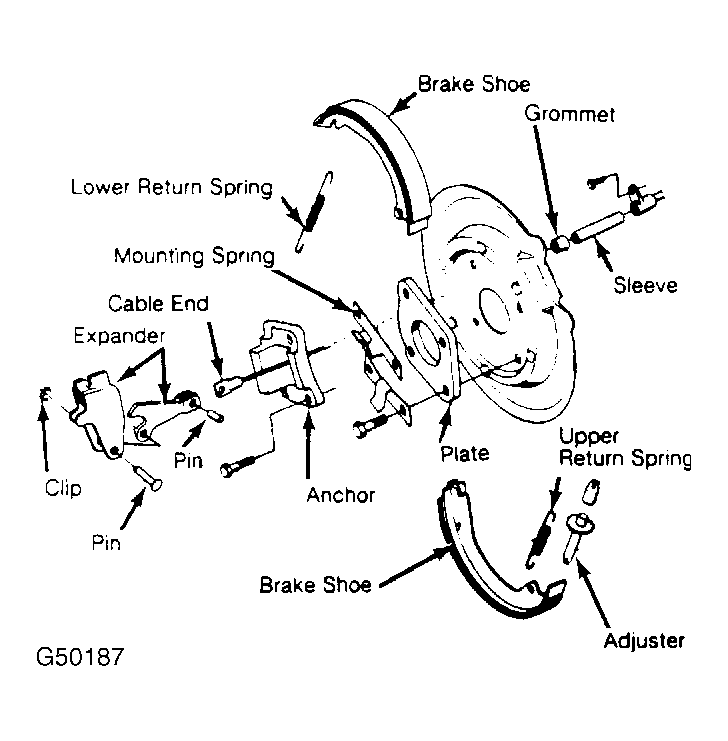

- Remove caliper (without disconnecting hydraulic line) and support out of way. Remove rotor. Remove brake shoe return springs and lift off shoes and adjuster.
