Engine Front Cover Oil Seal: Installation

  1. Using new gasket, install front cover. Install oil pan, drive belt guard plate, and wiring harness.
  2. Using driver (5024), install crankshaft seal. Using similar driver (5025), install intermediate shaft seal in front cover. Install inner belt guide on camshaft (collar facing away from belt).
  3. Install camshaft sprocket, aligning notch with dowel on camshaft. Install outer belt guide, washer and center bolt. Hold sprocket with holding tool (5034) and tighten bolt.
  4. Install sprocket on intermediate shaft, aligning notch with dowel on shaft. Use holding tool (5034) to hold shaft while tightening center bolt.
  5. Install belt guide and sprocket on crankshaft. Install front hub and tighten bolt. Install drive belt and complete installation of previously removed parts.

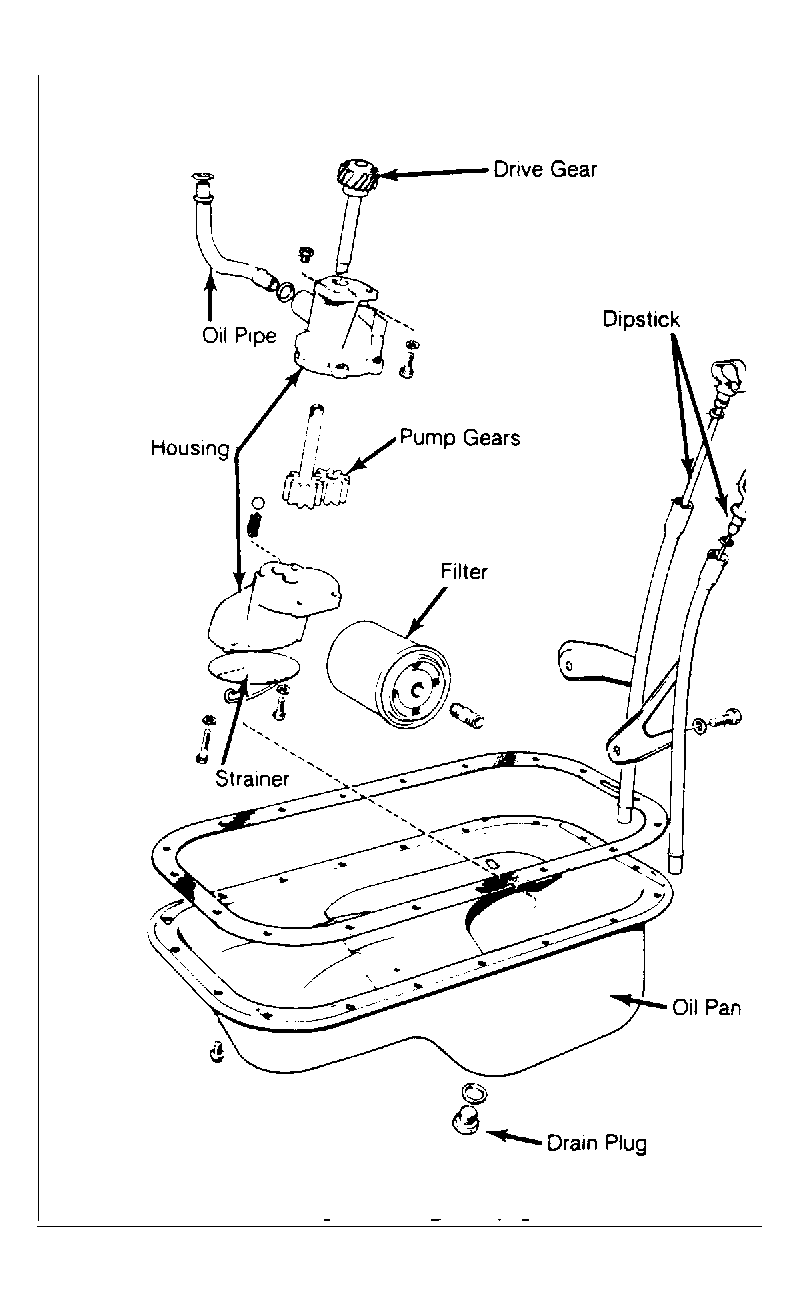

Fig 1: Oiling System Components
G82283

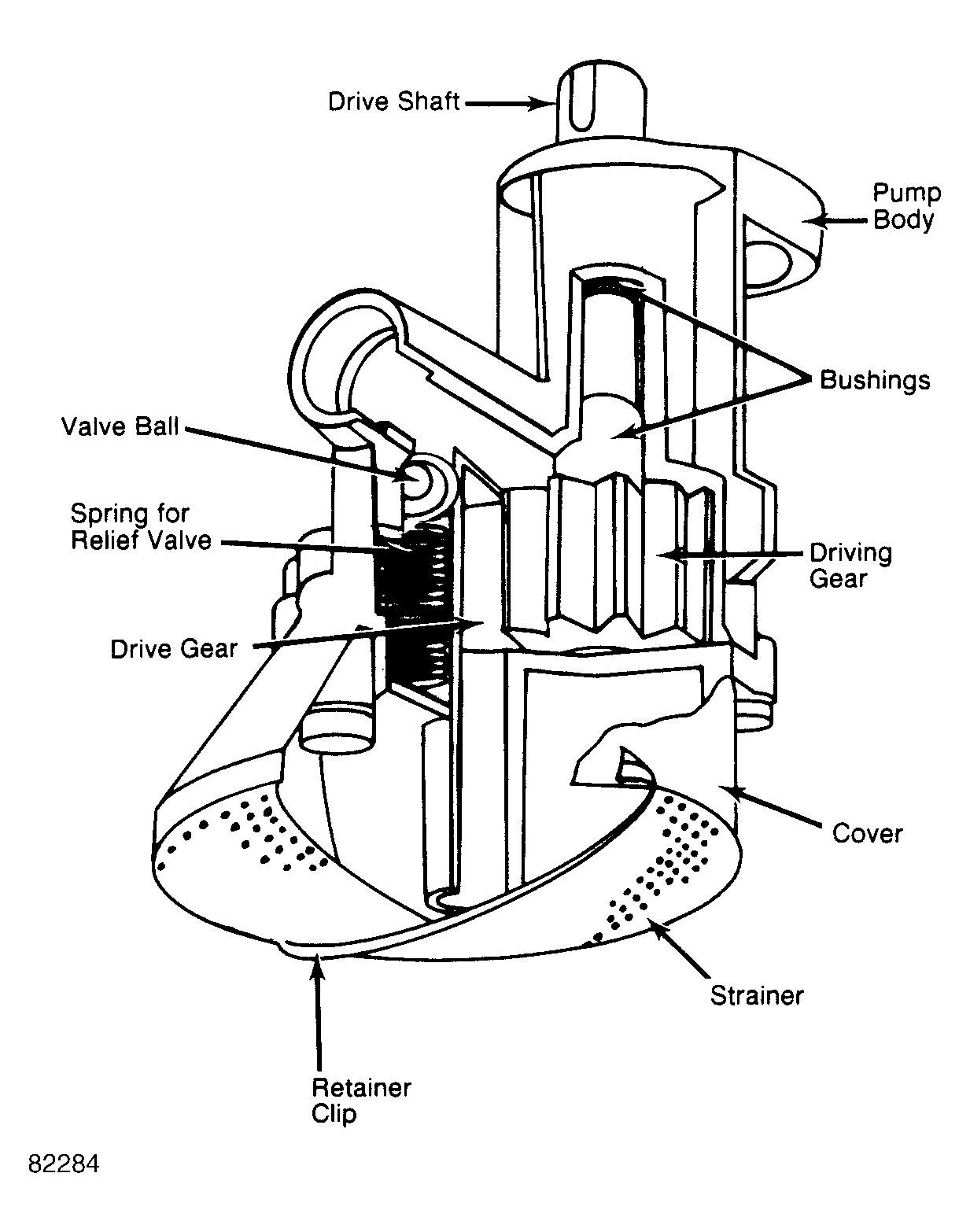

Fig 2: Cutaway View of Oil Pump Prime pump before installing.
G82284
