Fault 8: Start Inhibitor Malfunction

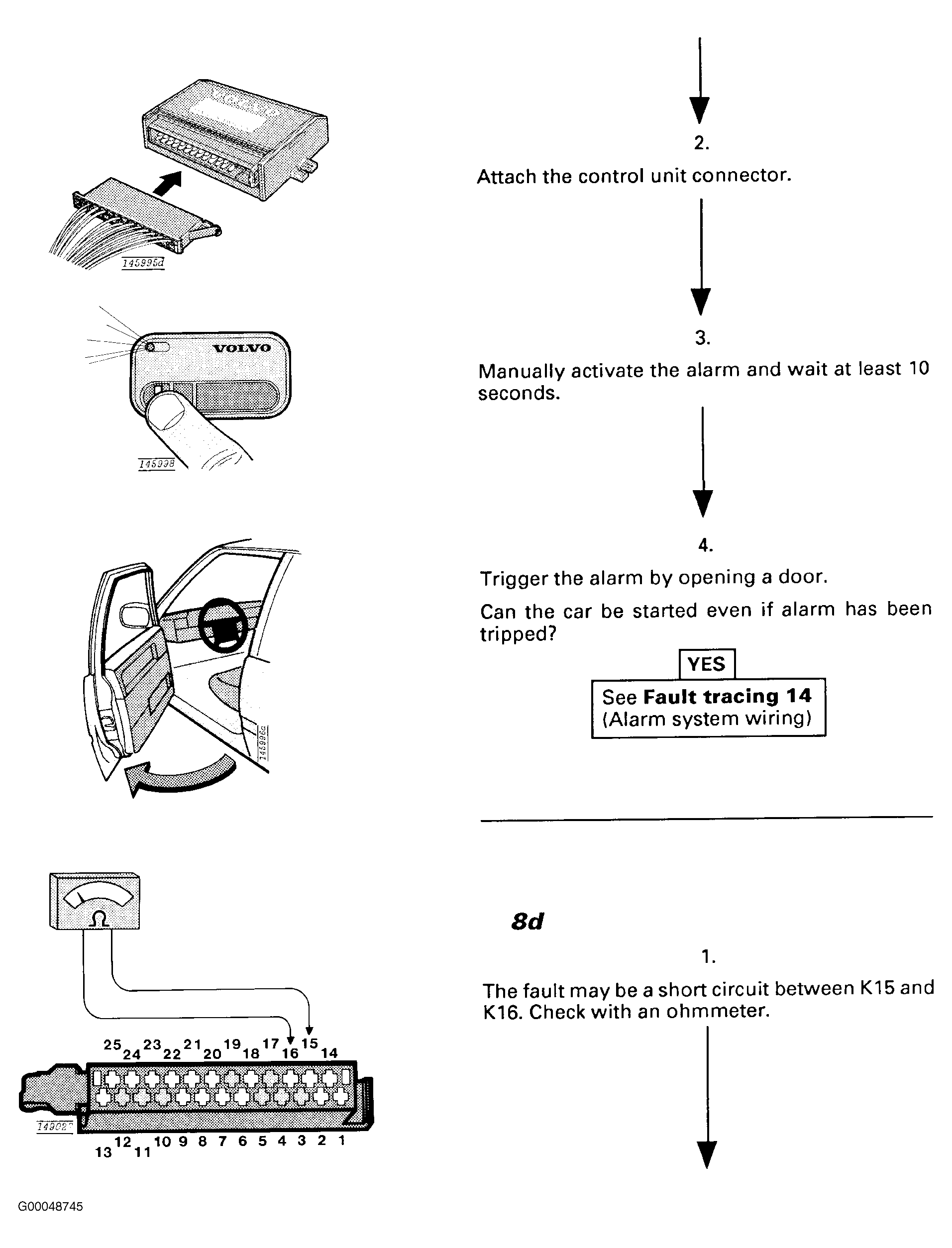

Fig 1: Fault 8: Start Inhibitor Malfunction (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

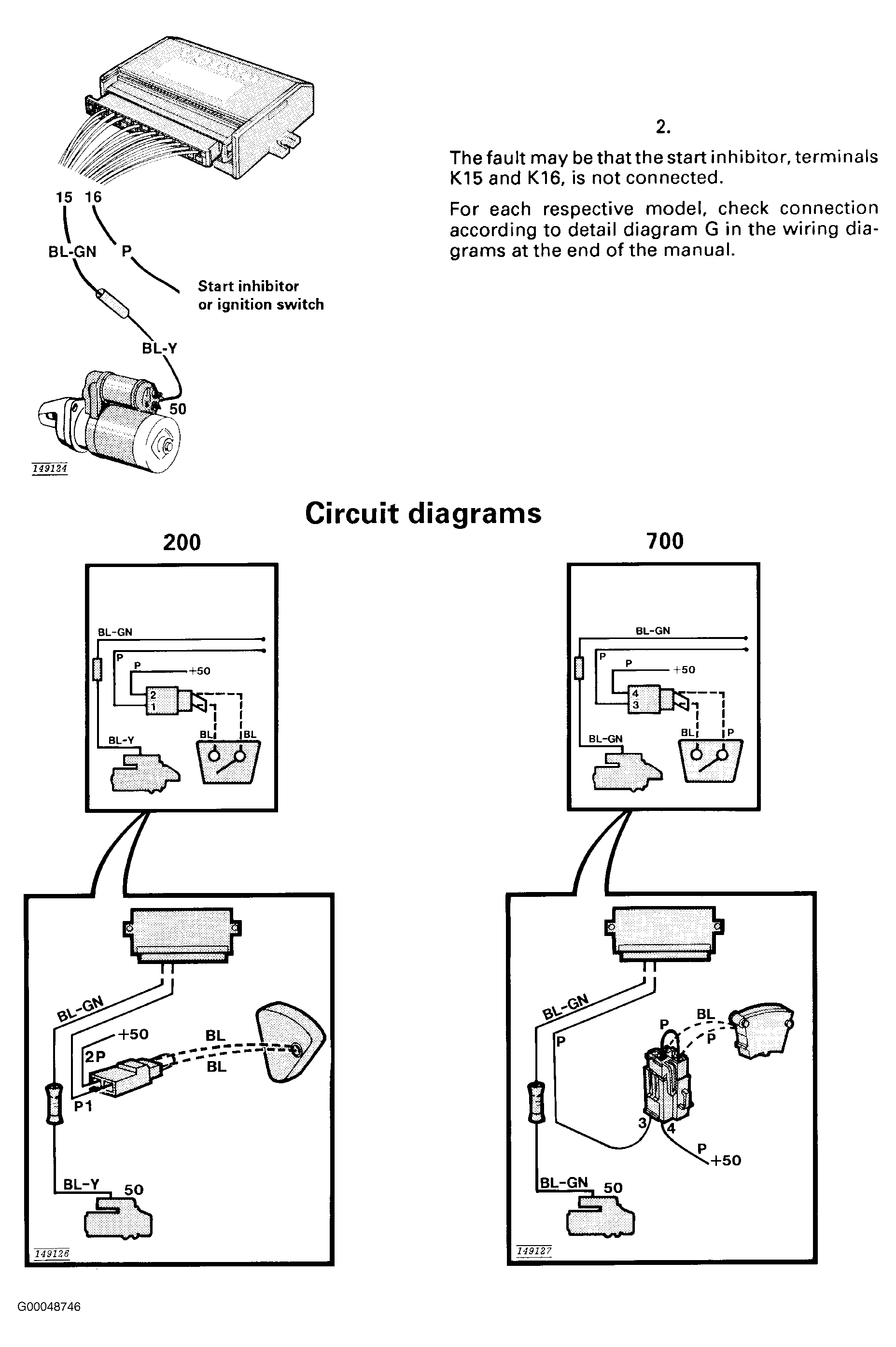

Fig 2: Fault 8: Start Inhibitor Malfunction (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

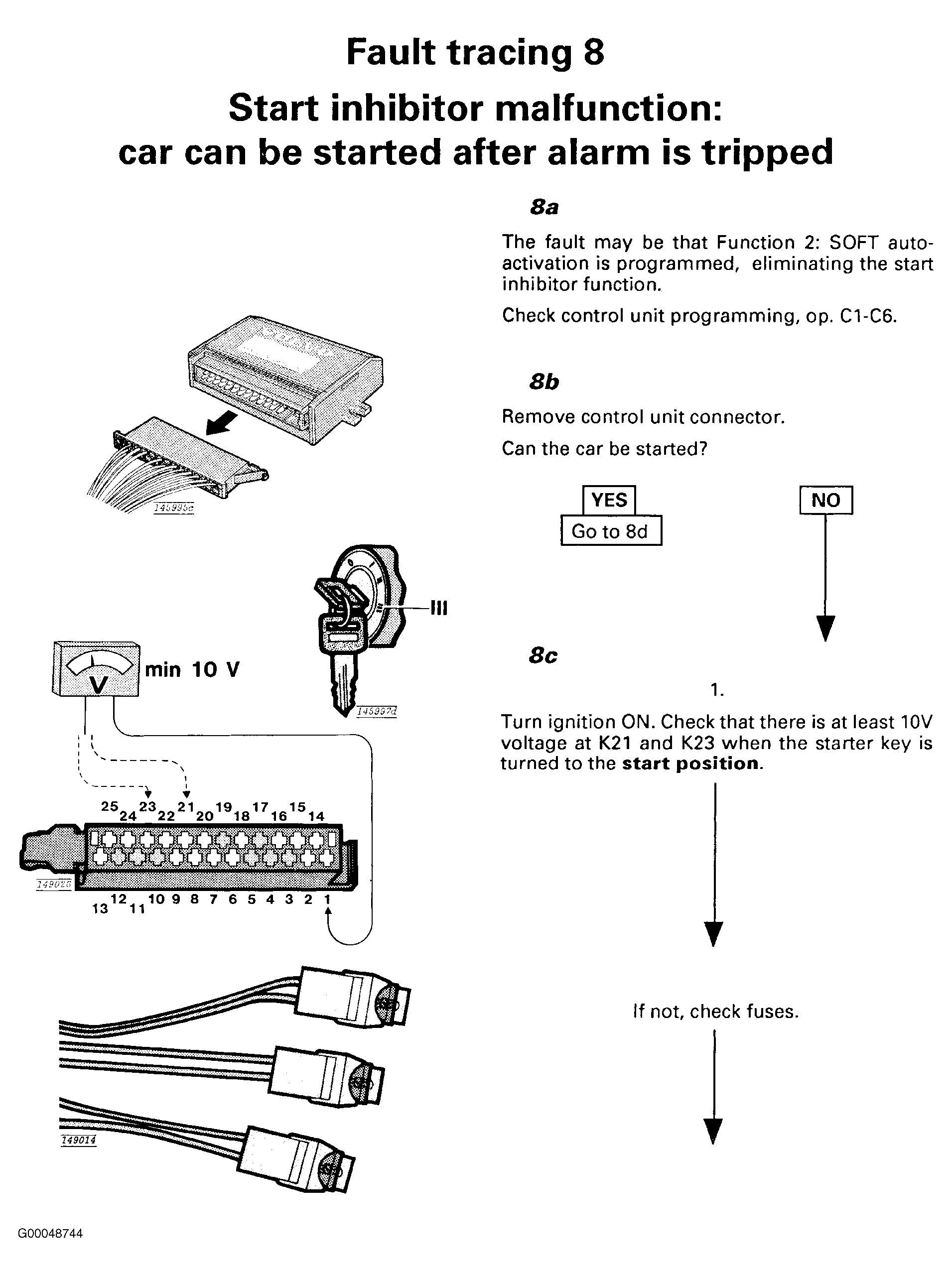

Fig 3: Fault 8: Start Inhibitor Malfunction (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.
