Fault 6: No Audible Signal When Alarm Tripped

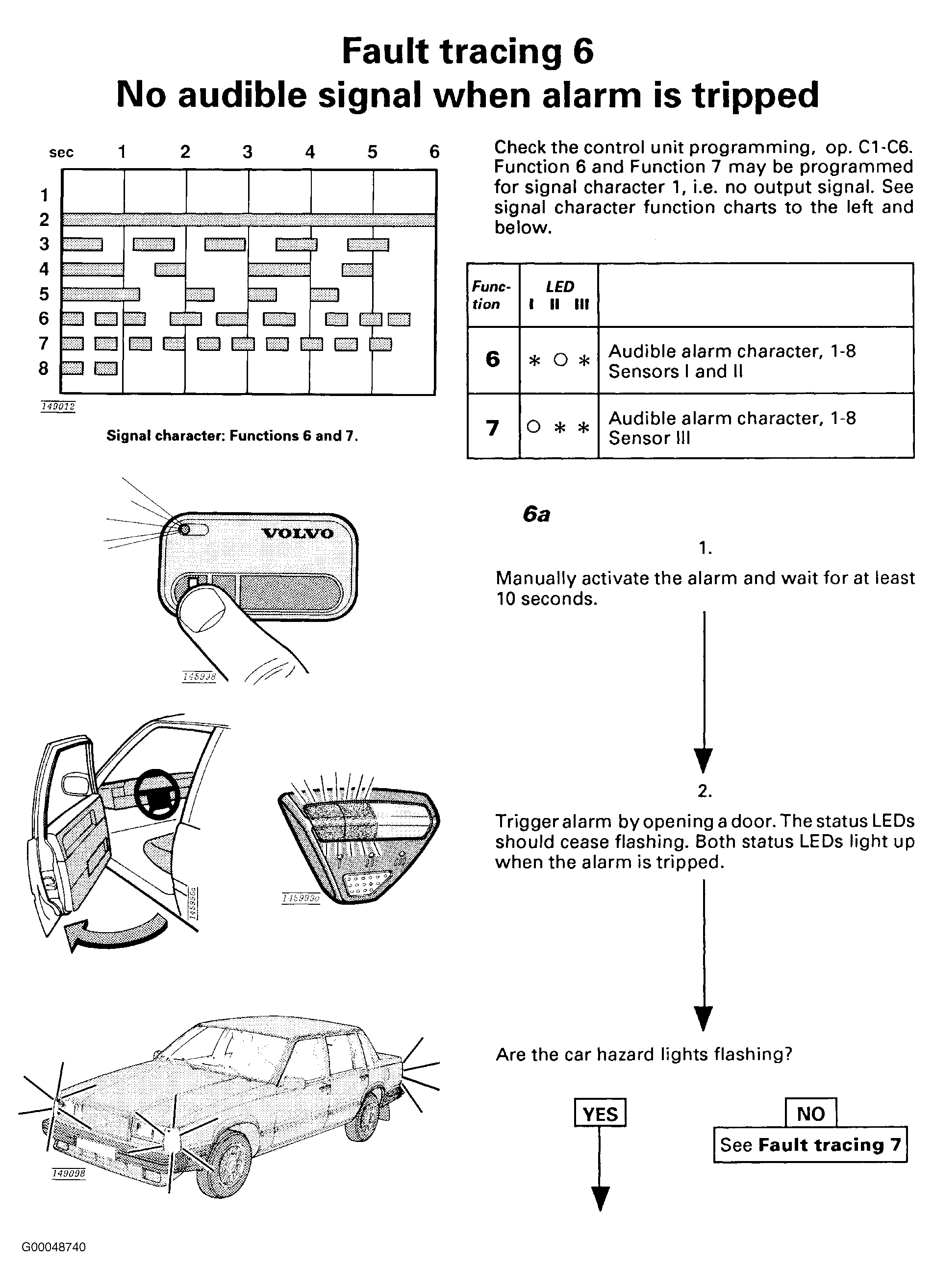

Fig 1: Fault 6: No Audible Signal When Alarm Tripped (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

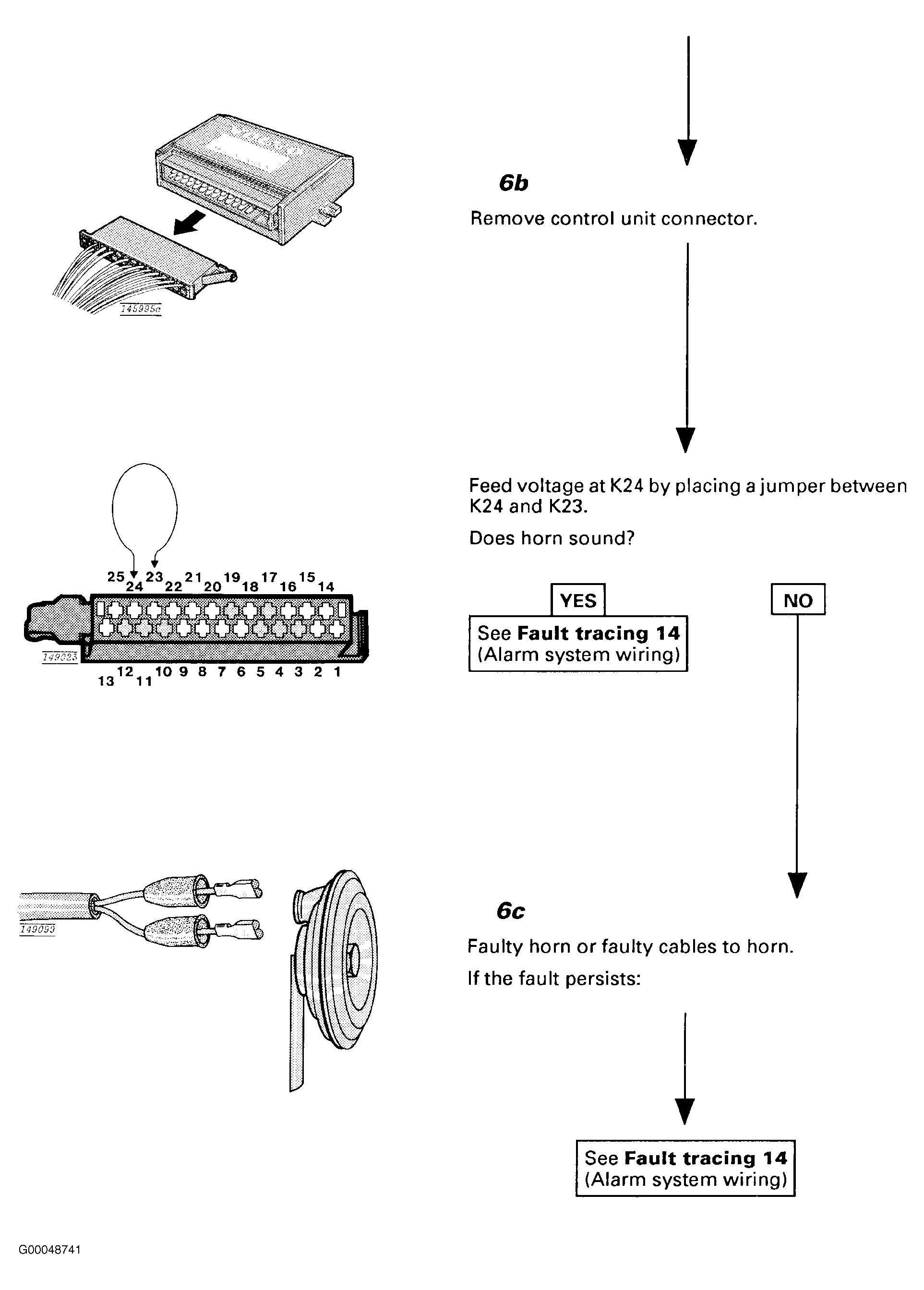

Fig 2: Fault 6: No Audible Signal When Alarm Tripped (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.
