Fault 5: No Alarm (Movement) Sensors, Sensor Loop III

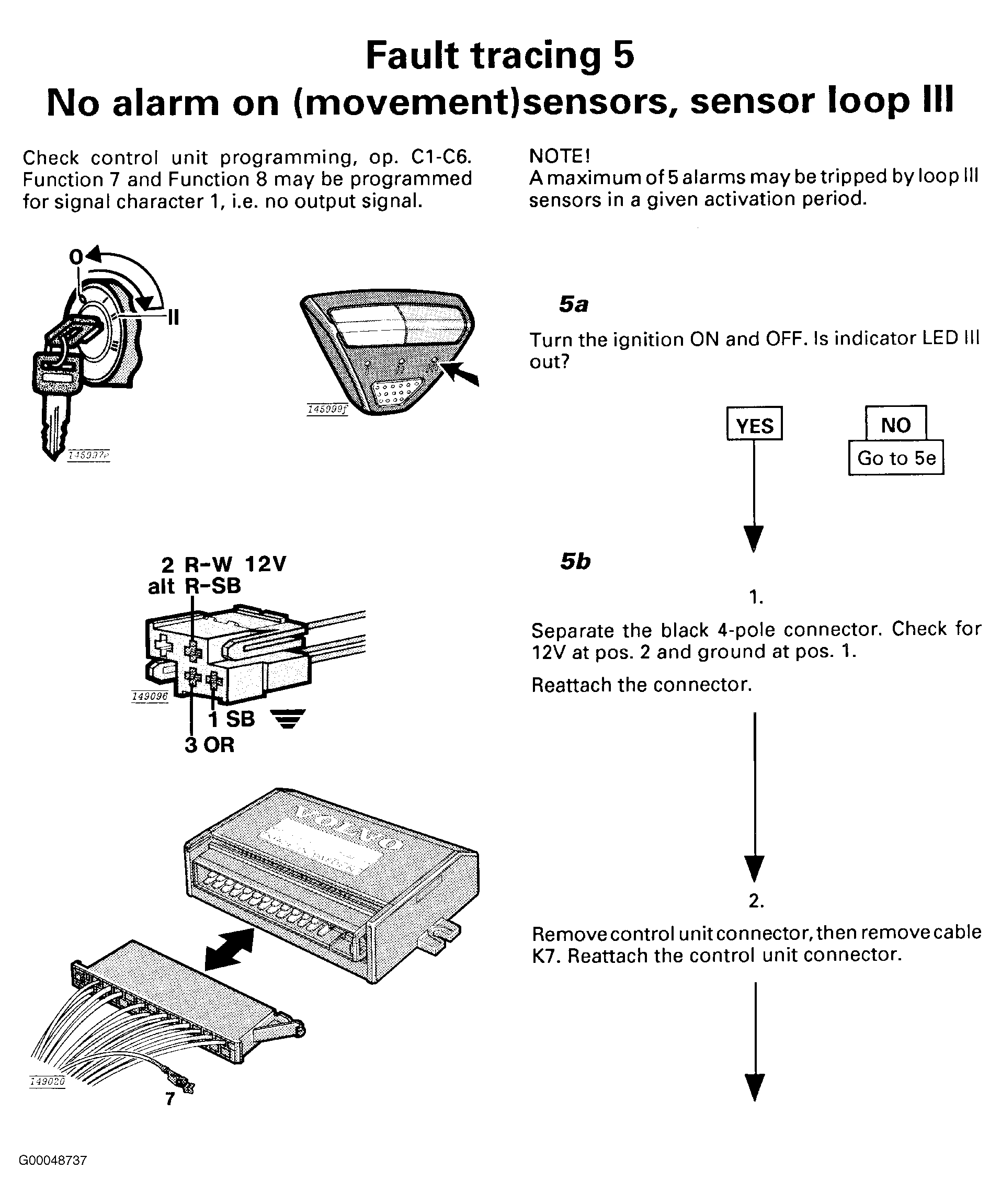

Fig 1: Fault 5: No Alarm (Movement) Sensors, Sensor Loop III (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

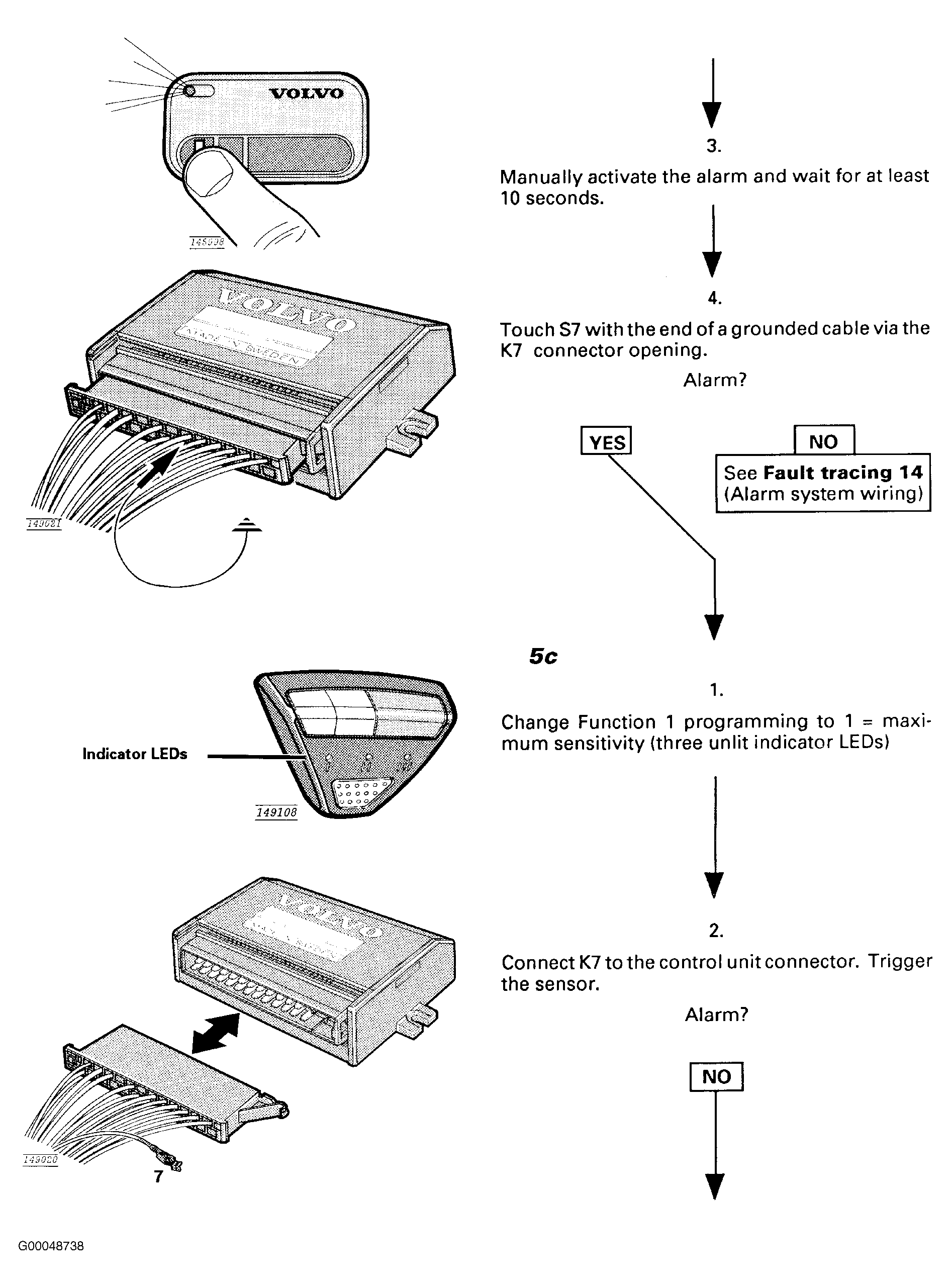

Fig 2: Fault 5: No Alarm (Movement) Sensors, Sensor Loop III (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

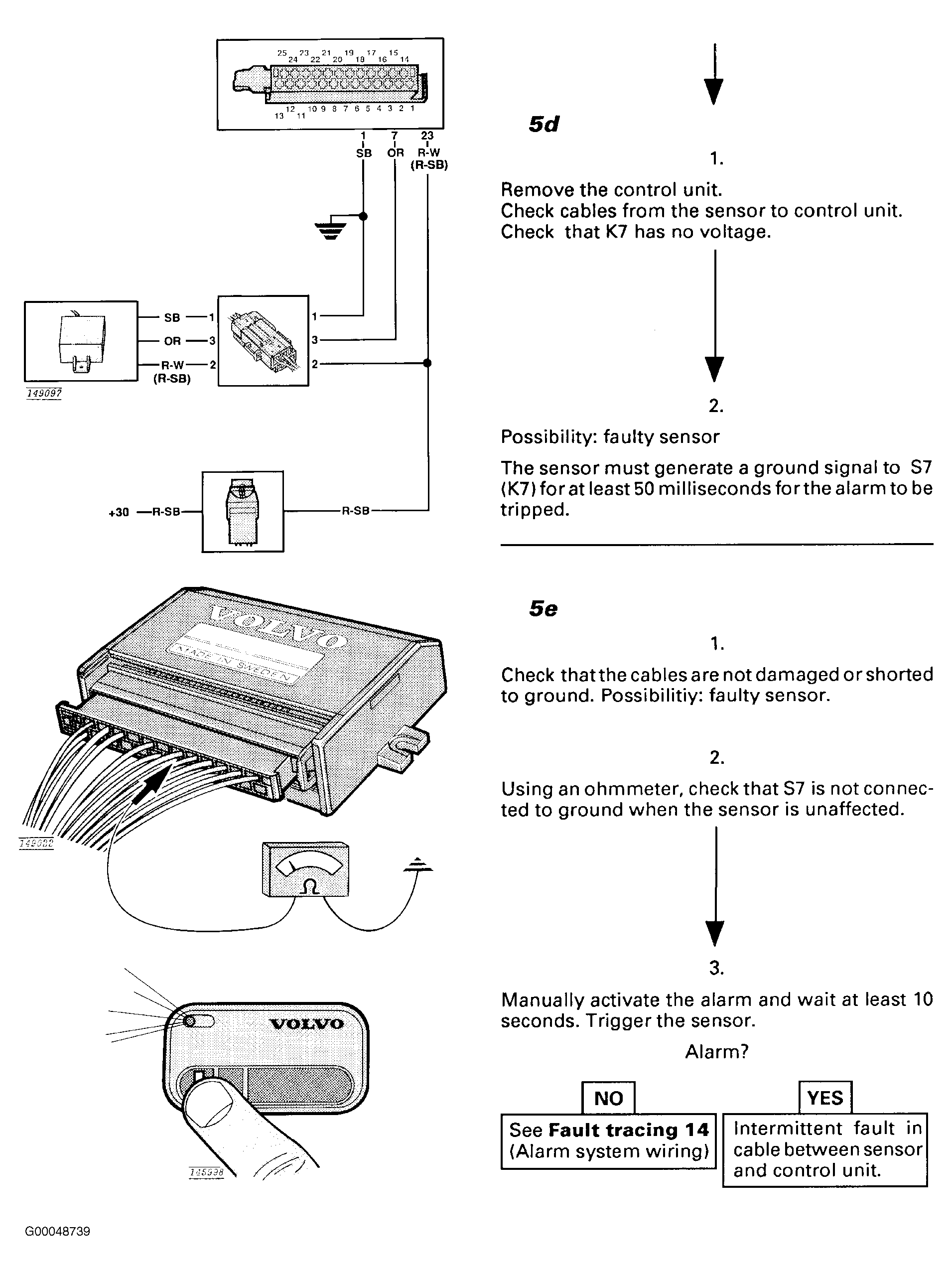

Fig 3: Fault 5: No Alarm (Movement) Sensors, Sensor Loop III (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.
