Fault 4: Alarm Not Triggered When Hood Or Trunk Lid/Tailgate Are Opened

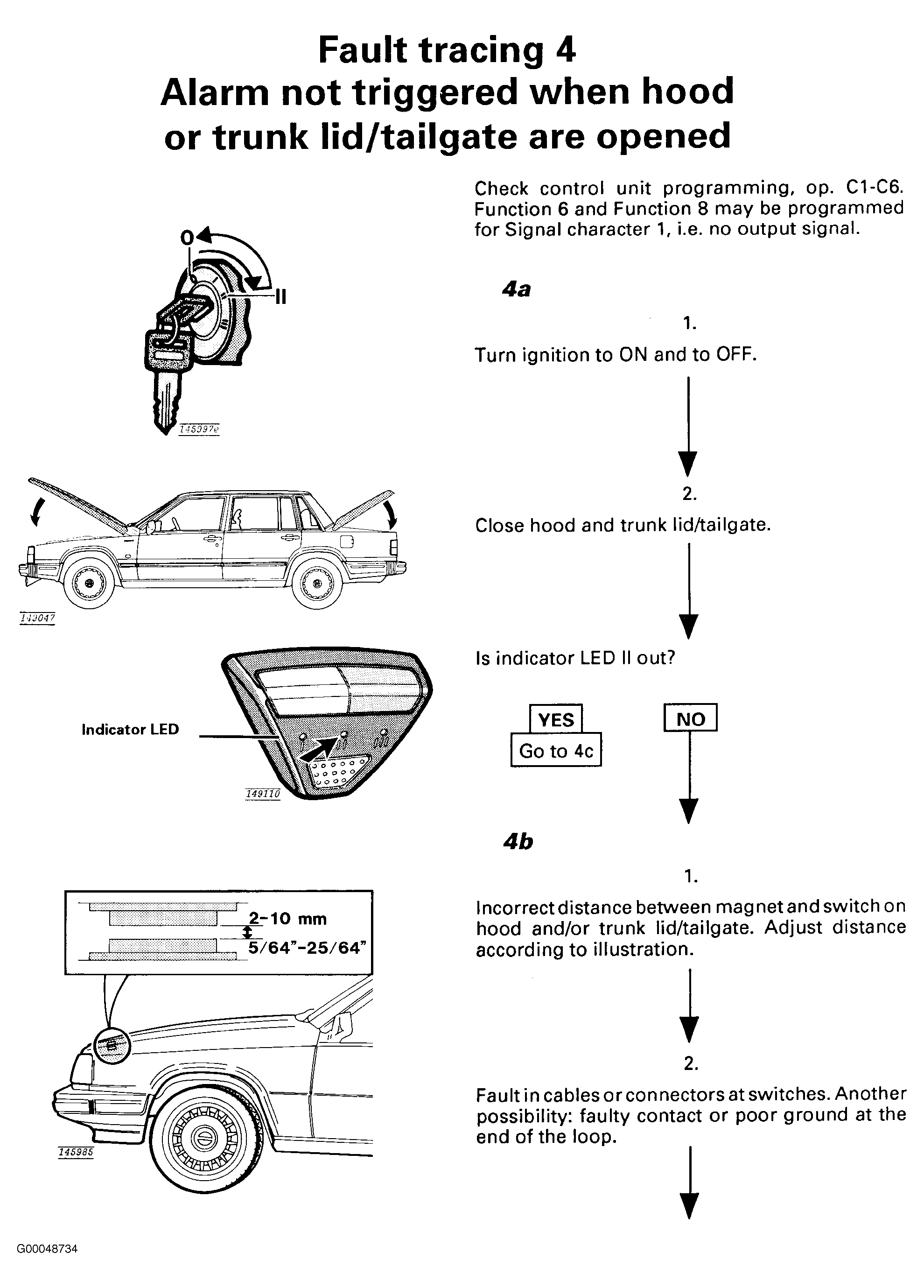

Fig 1: Fault 4: Alarm Not Triggered When Hood Or Trunk Lid/Tailgate Opened (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

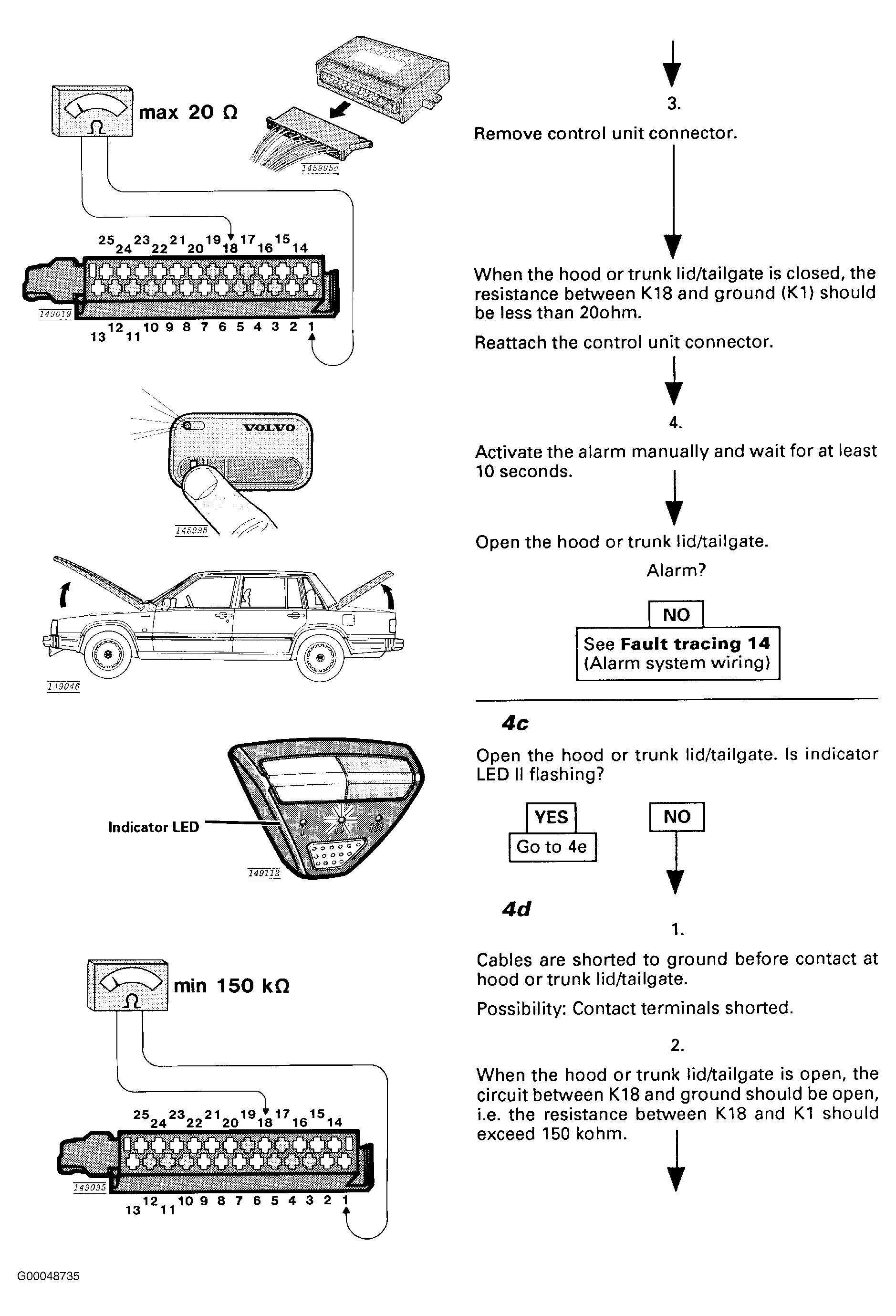

Fig 2: Fault 4: Alarm Not Triggered When Hood Or Trunk Lid/Tailgate Opened (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

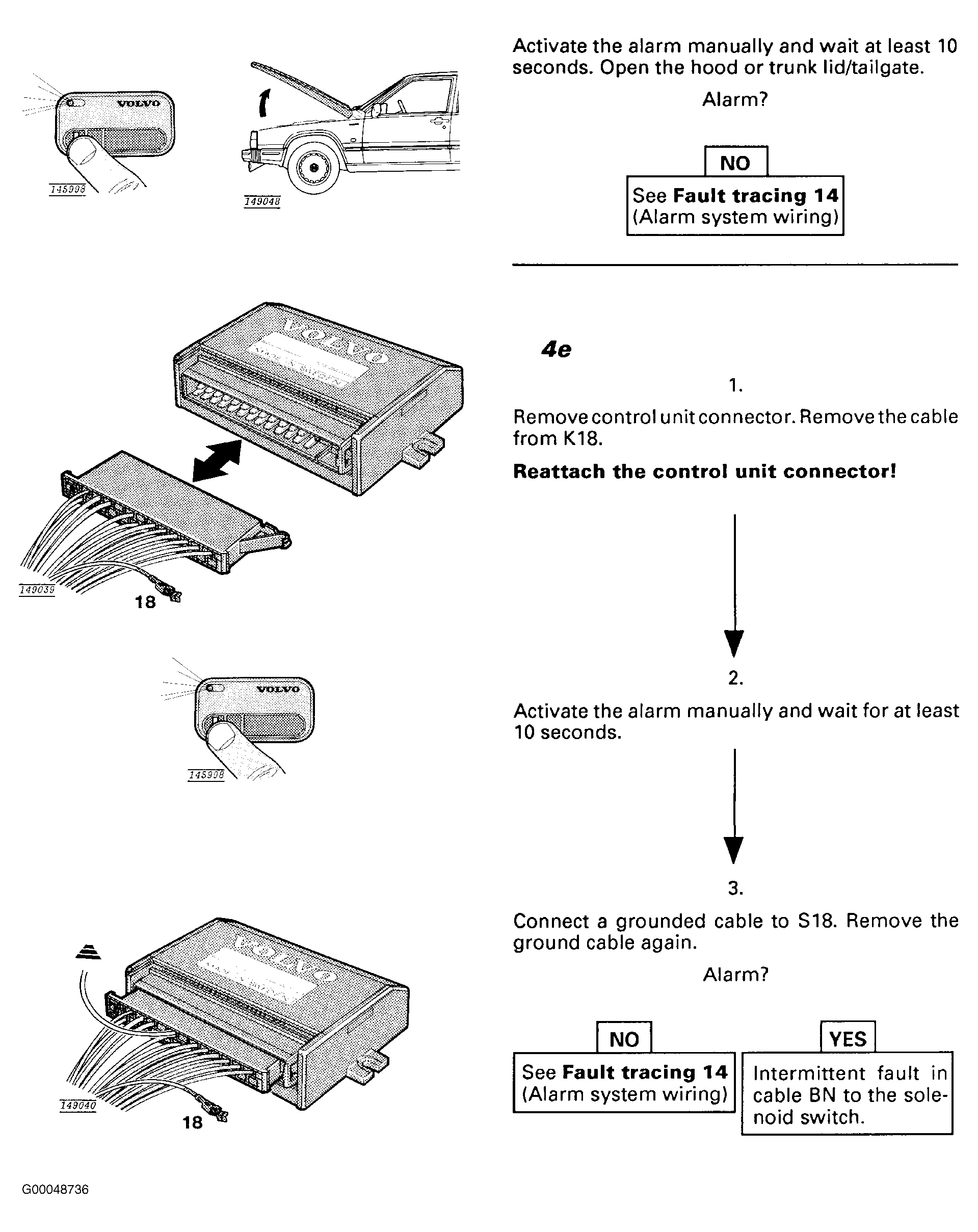

Fig 3: Fault 4: Alarm Not Triggered When Hood Or Trunk Lid/Tailgate Opened (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.
