Fault 3: Alarm Not Tripped When Door Is Opened

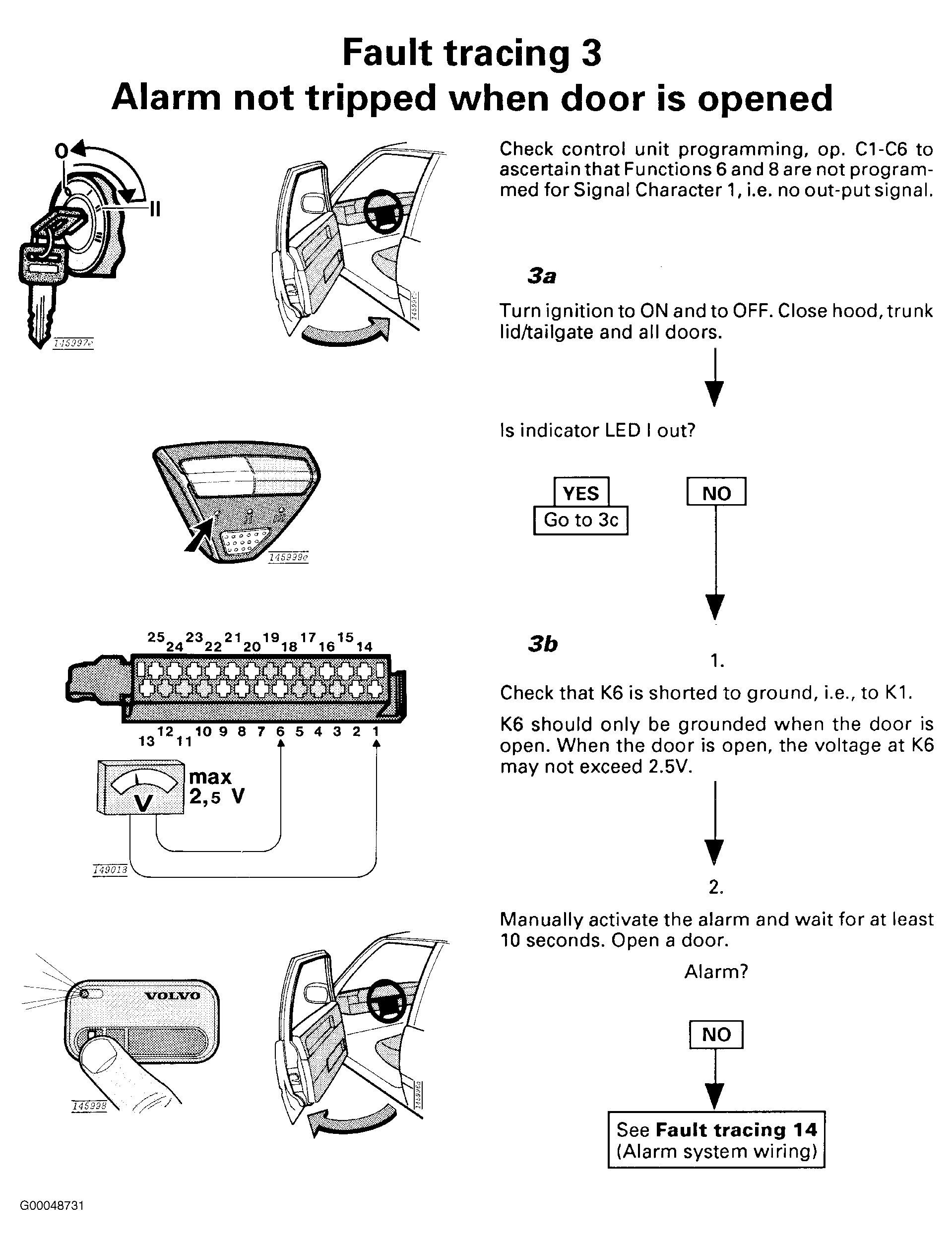

Fig 1: Fault 3: Alarm Not Trip When Door Opened (1 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.

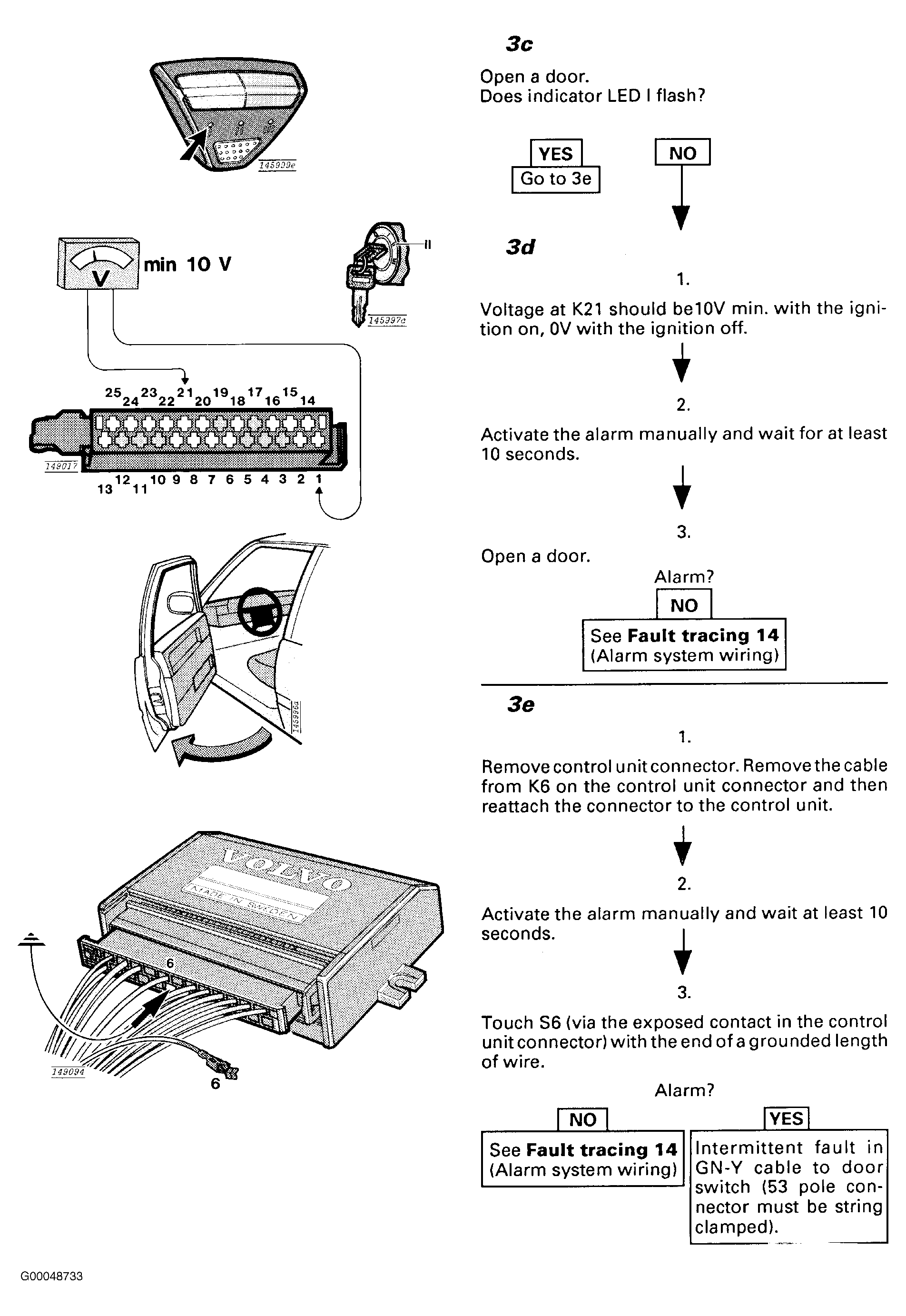

Fig 2: Fault 3: Alarm Not Trip When Door Opened (2 Of 2)

Courtesy of VOLVO CARS OF NORTH AMERICA.
