LEMON Manuals
: Even more car manuals for everyone
Home
>>
Volvo
>>
1985
>>
244 GL, Standard
>>
Repair and Diagnosis (Single Page)
>>
Body & Frame
>>
Door Locks
>>
VOLVO Guard Anti-Theft System
>>
Fault Diagnosis
>>
Fault 2: No Auto-Activation
Fault 2: No Auto-Activation

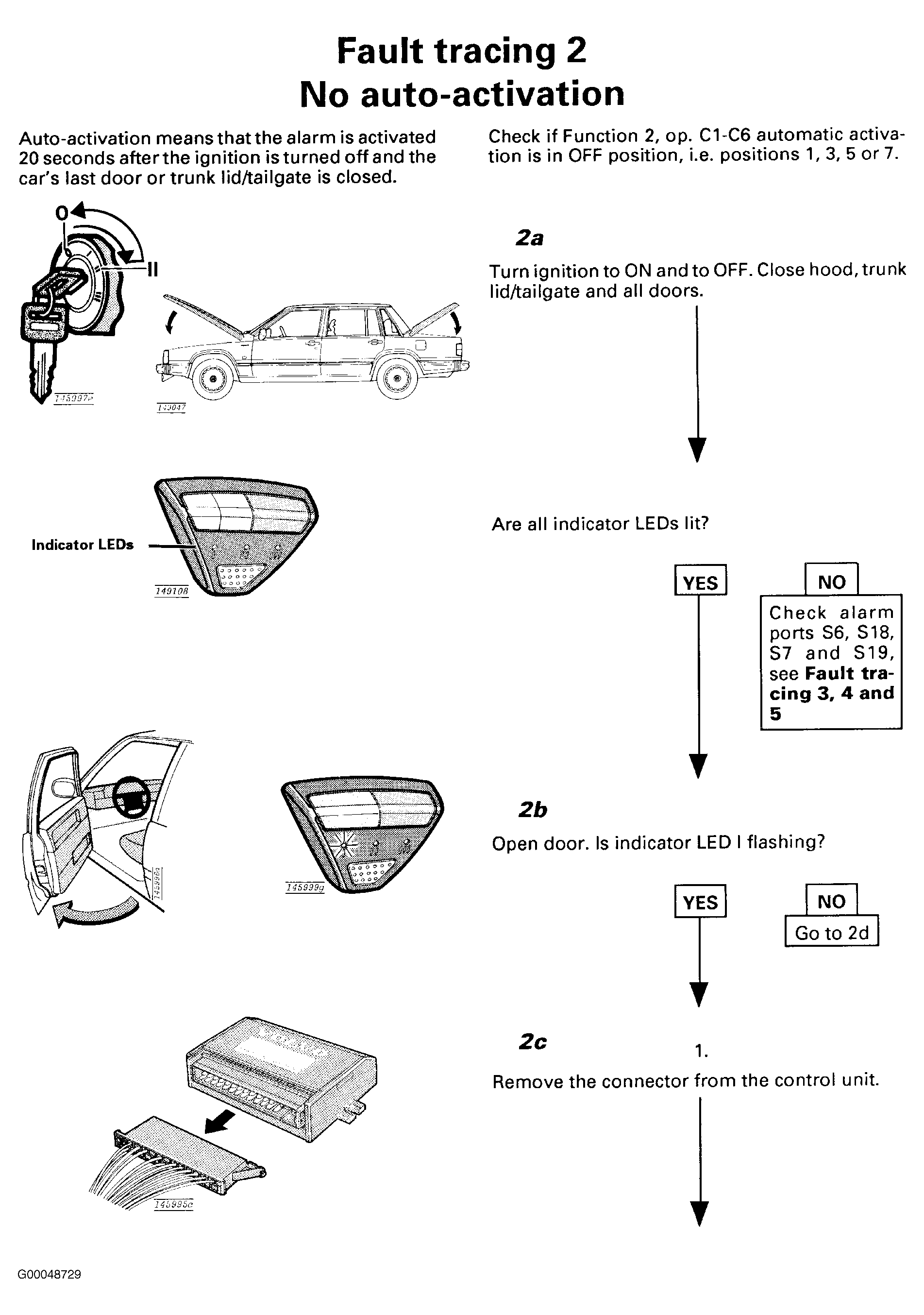

Fig 1: Fault 2: No Auto-Activation (1 Of 2)
Courtesy of VOLVO CARS OF NORTH AMERICA.

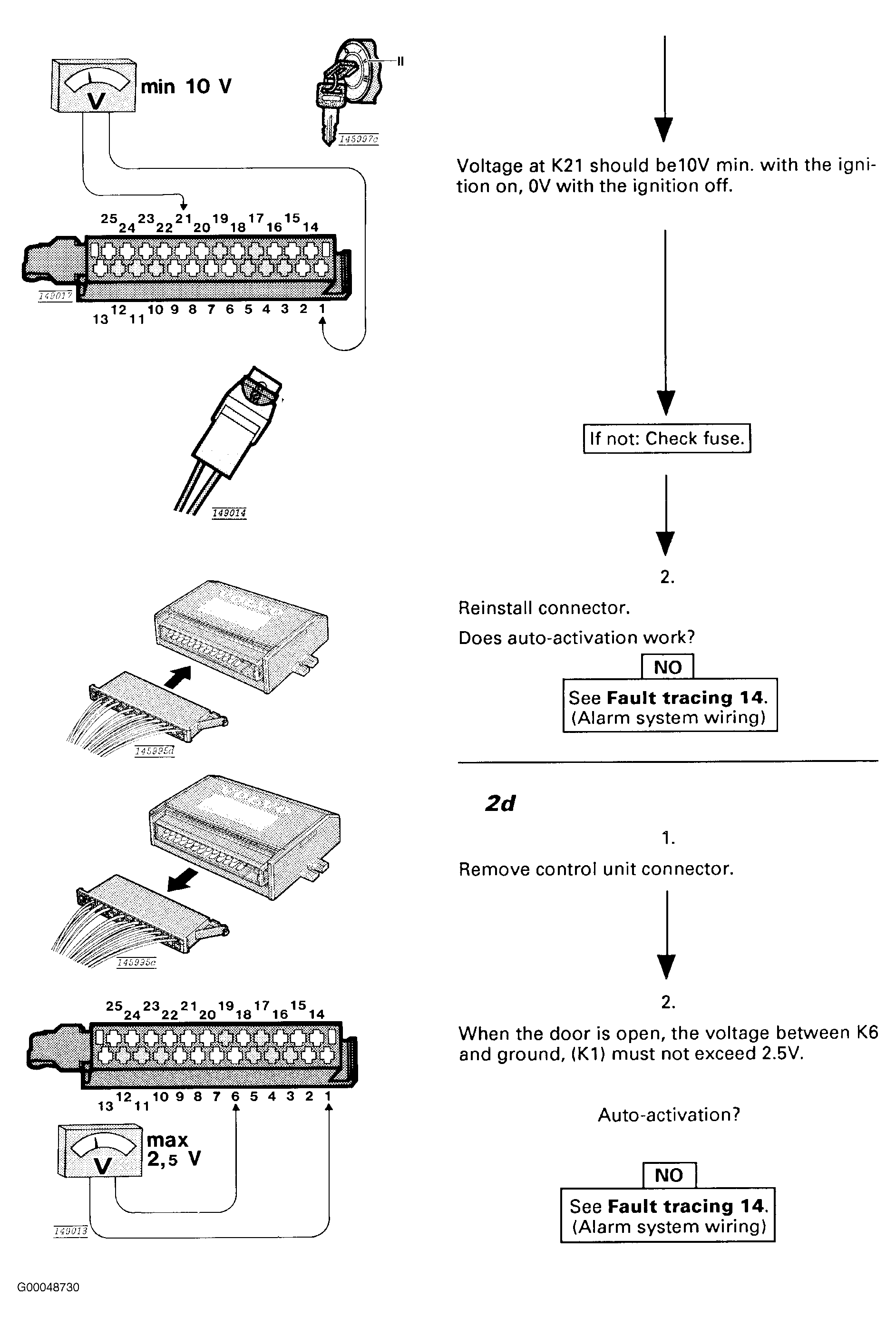

Fig 2: Fault 2: No Auto-Activation (2 Of 2)
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
Courtesy of VOLVO CARS OF NORTH AMERICA.
