Fault 16: Erroneous Or No Status Panel Indication

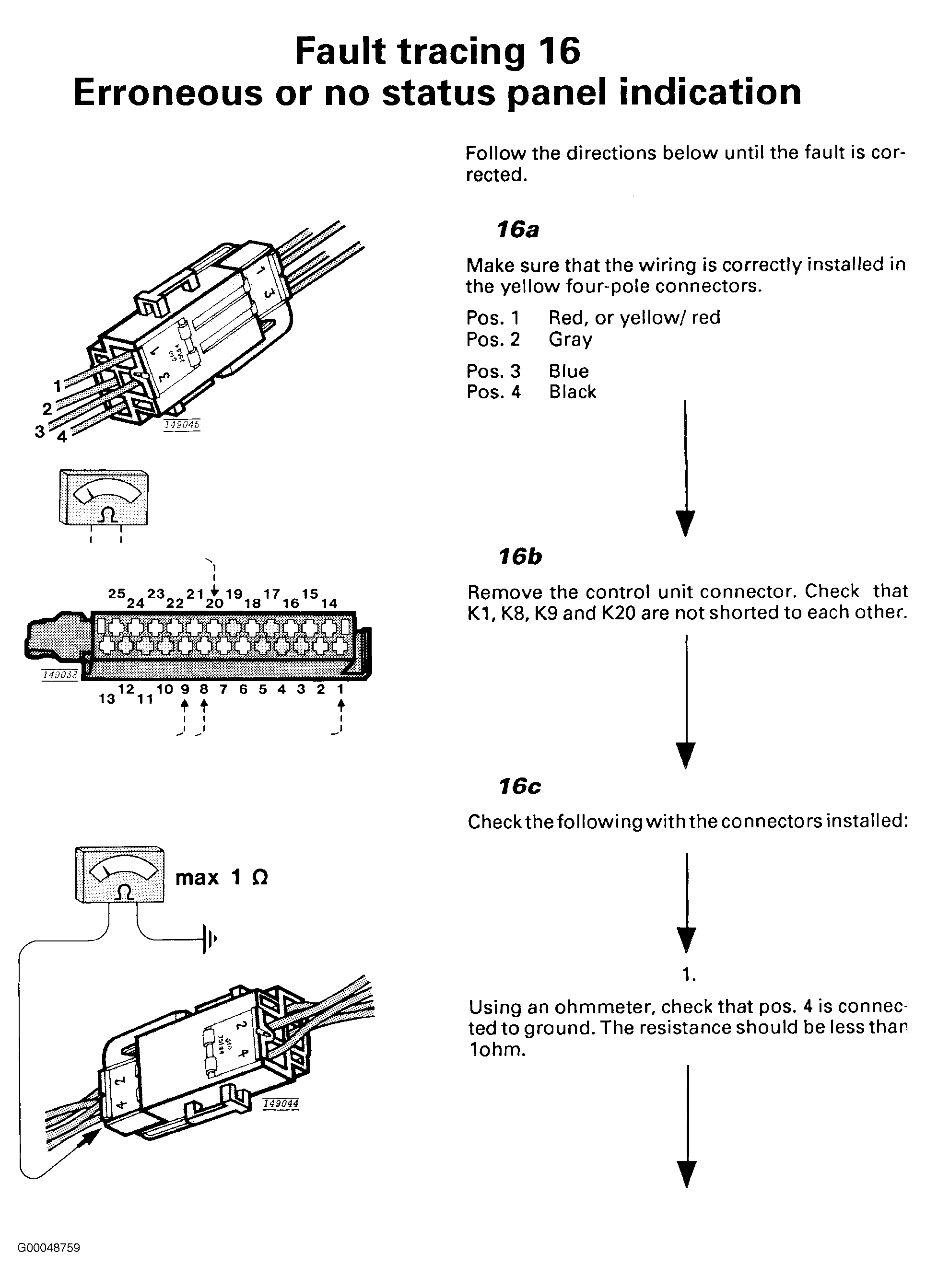

Fig 1: Fault 16: Erroneous Or No Status Panel Indication (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

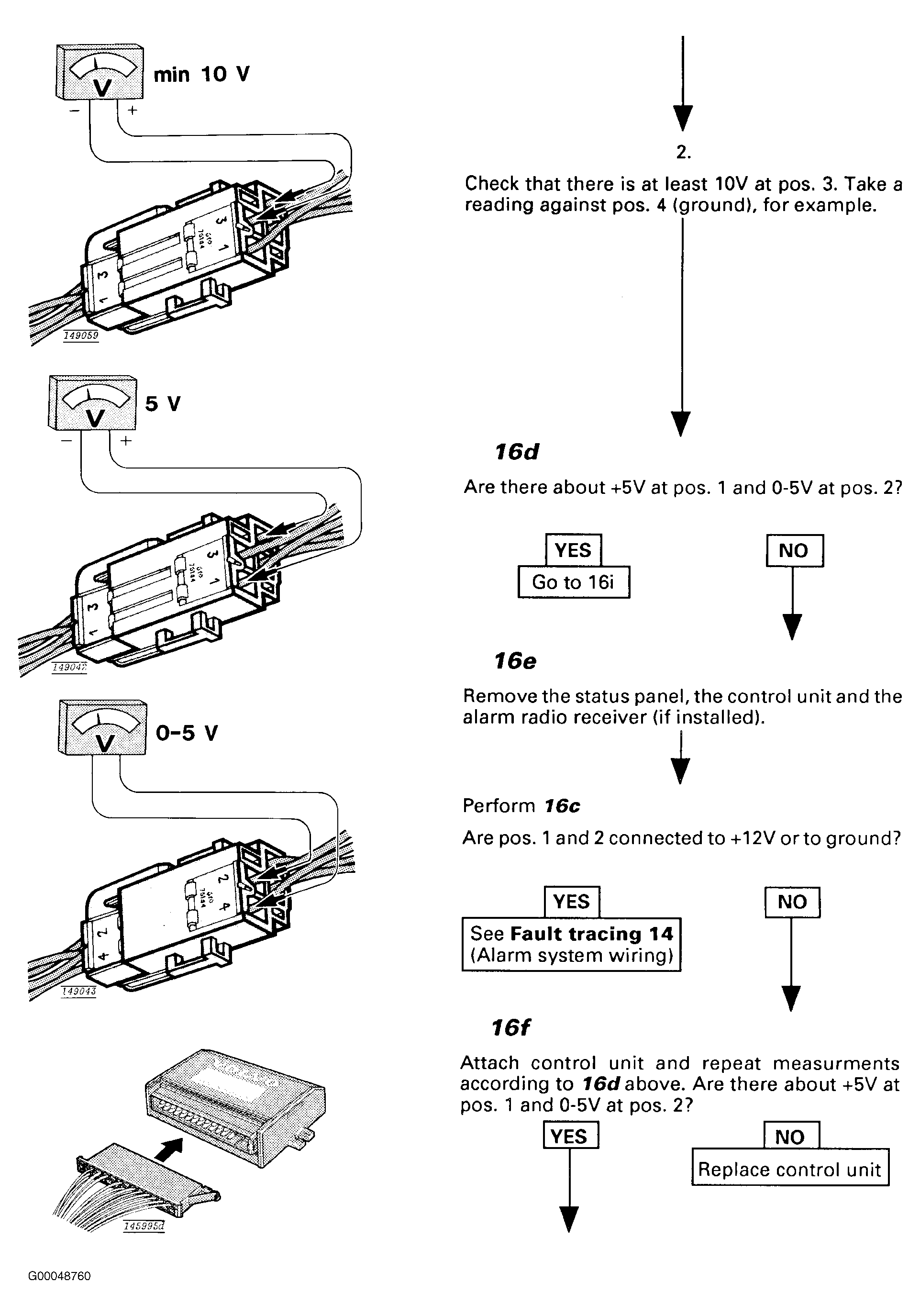

Fig 2: Fault 16: Erroneous Or No Status Panel Indication (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

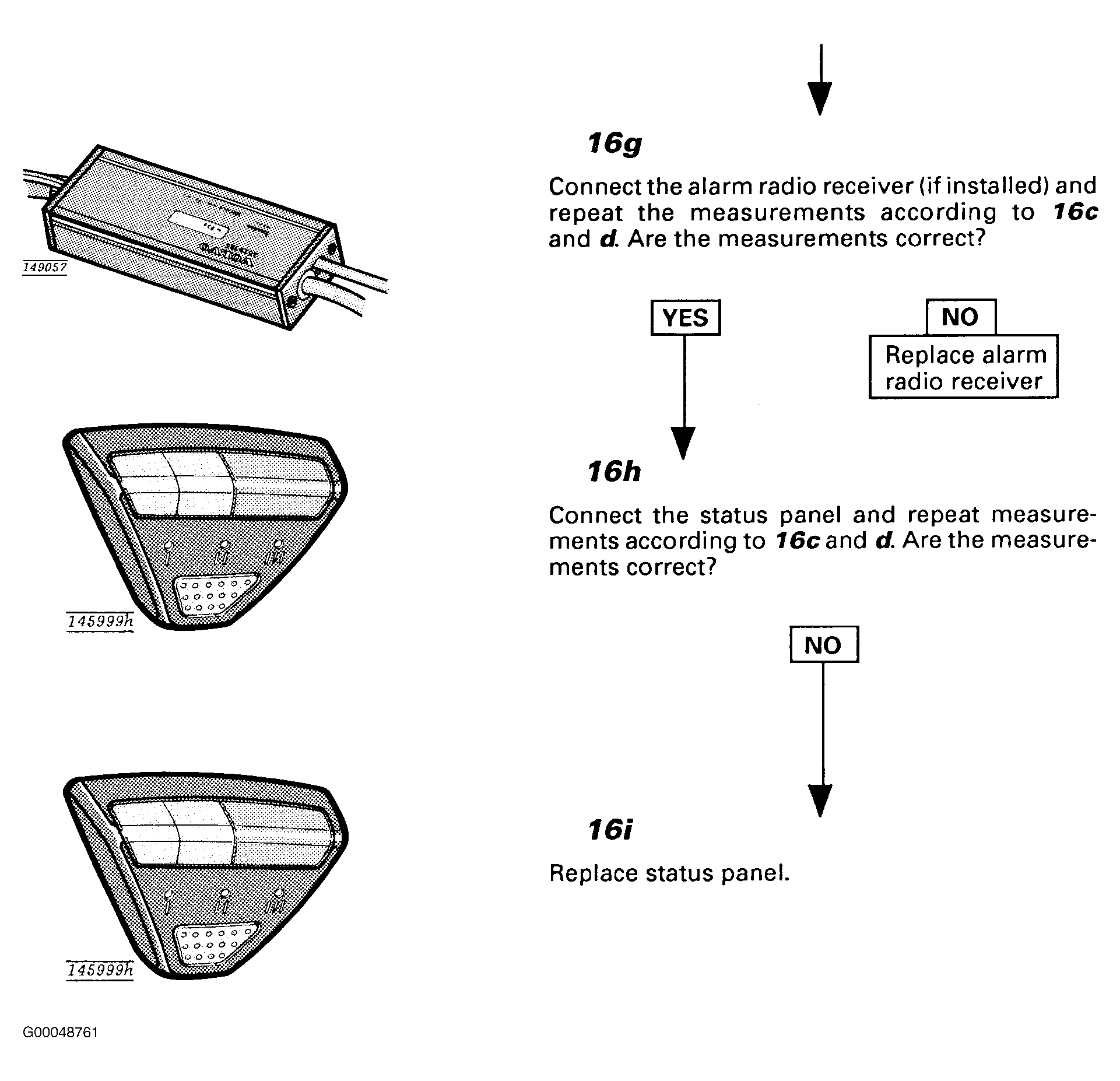

Fig 3: Fault 16: Erroneous Or No Status Panel Indication (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.
