Fault 14: Fault Tracing Alarm Wiring

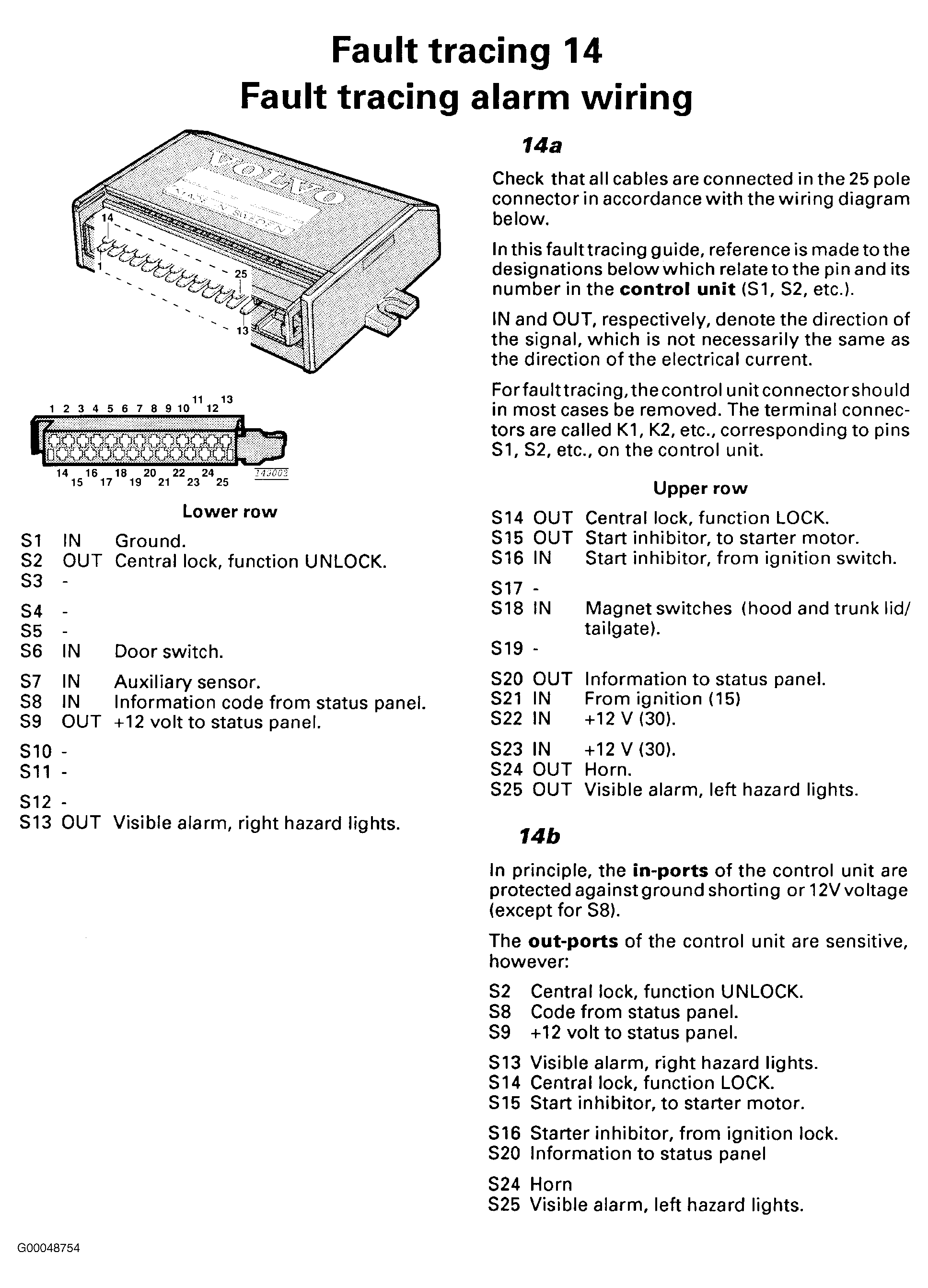

Fig 1: Fault 14: Fault Tracing Alarm Wiring (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

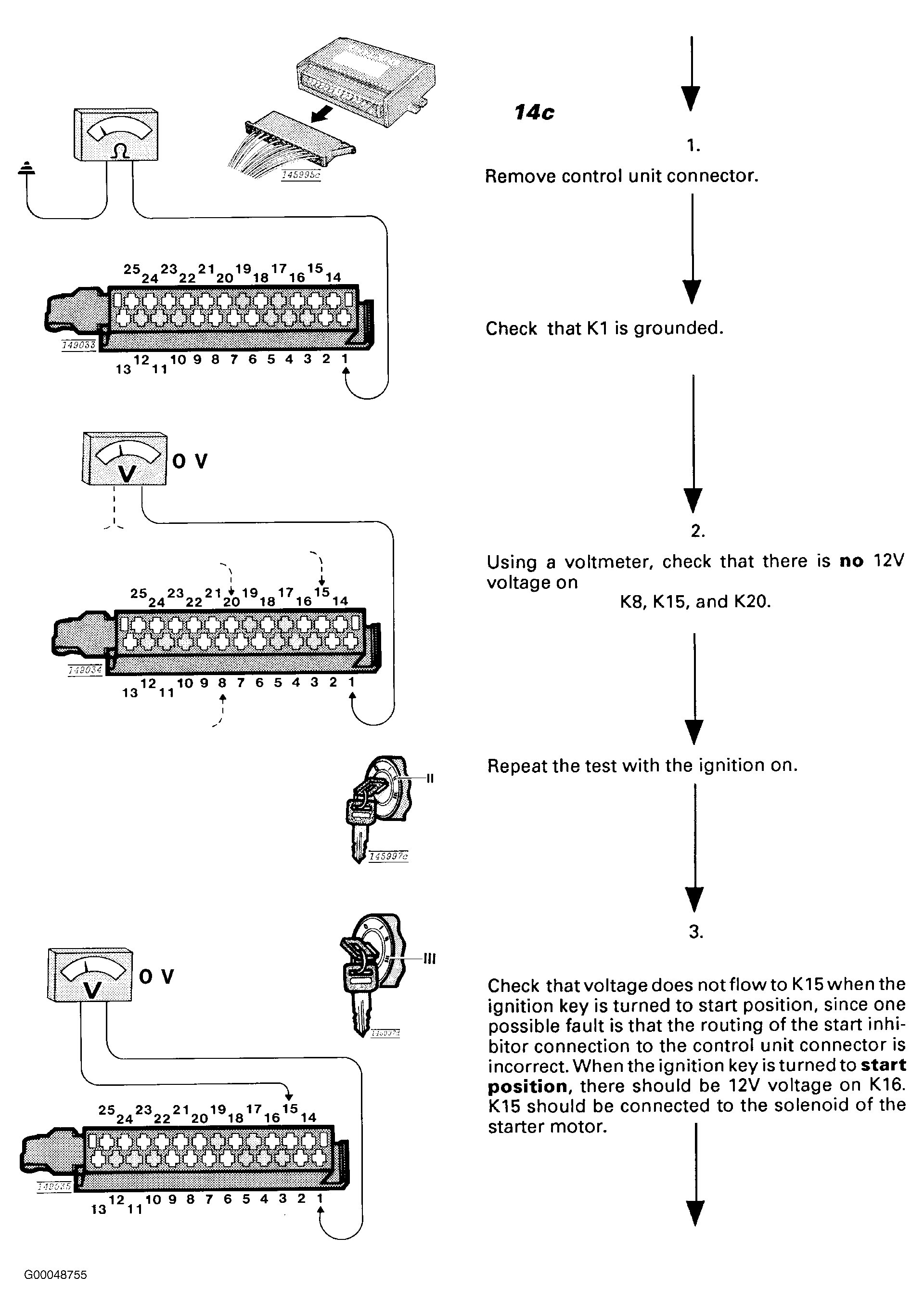

Fig 2: Fault 14: Fault Tracing Alarm Wiring (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

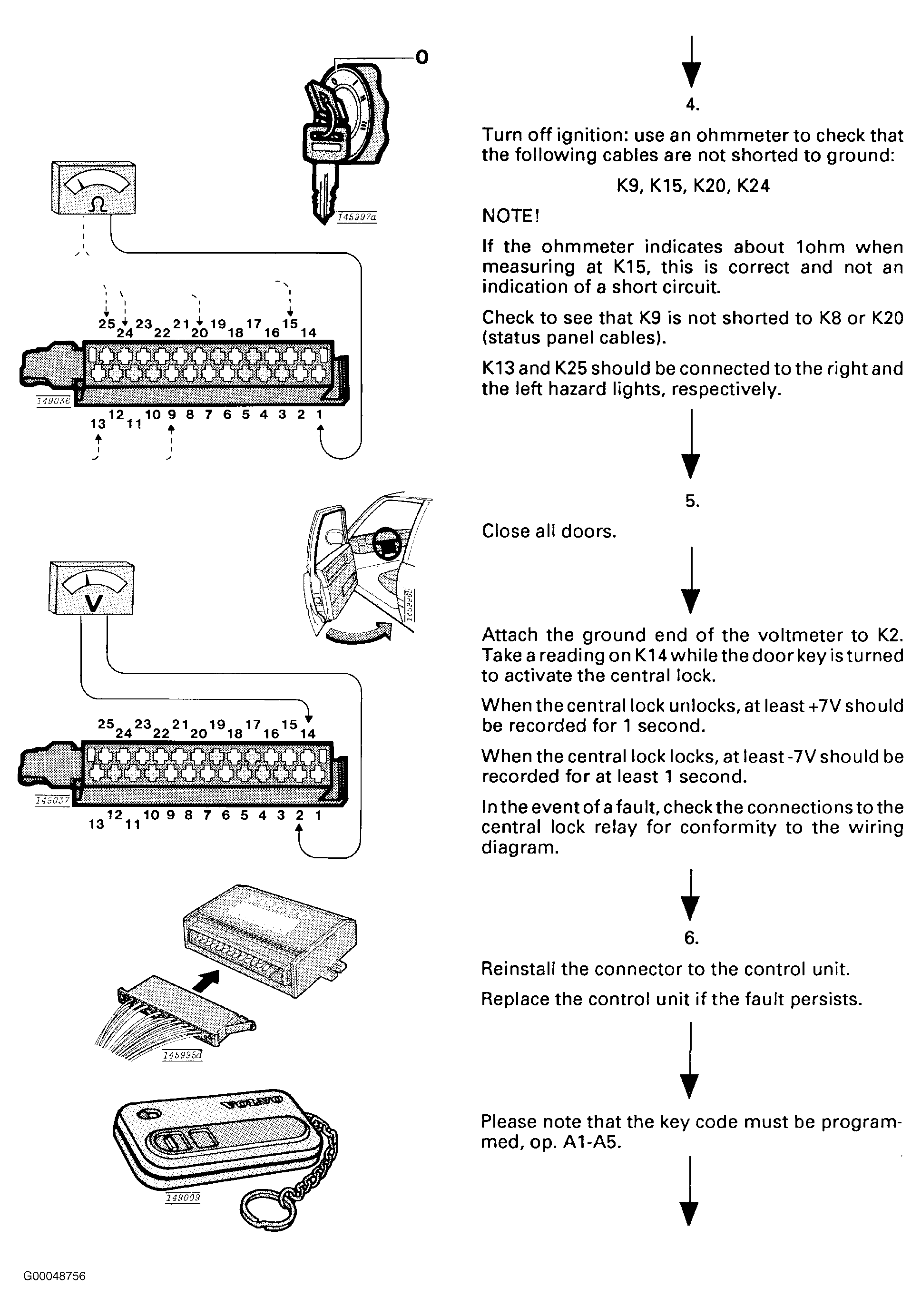

Fig 3: Fault 14: Fault Tracing Alarm Wiring (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.
