Fault 1: Alarm Cannot Be Activated Or Deactivated

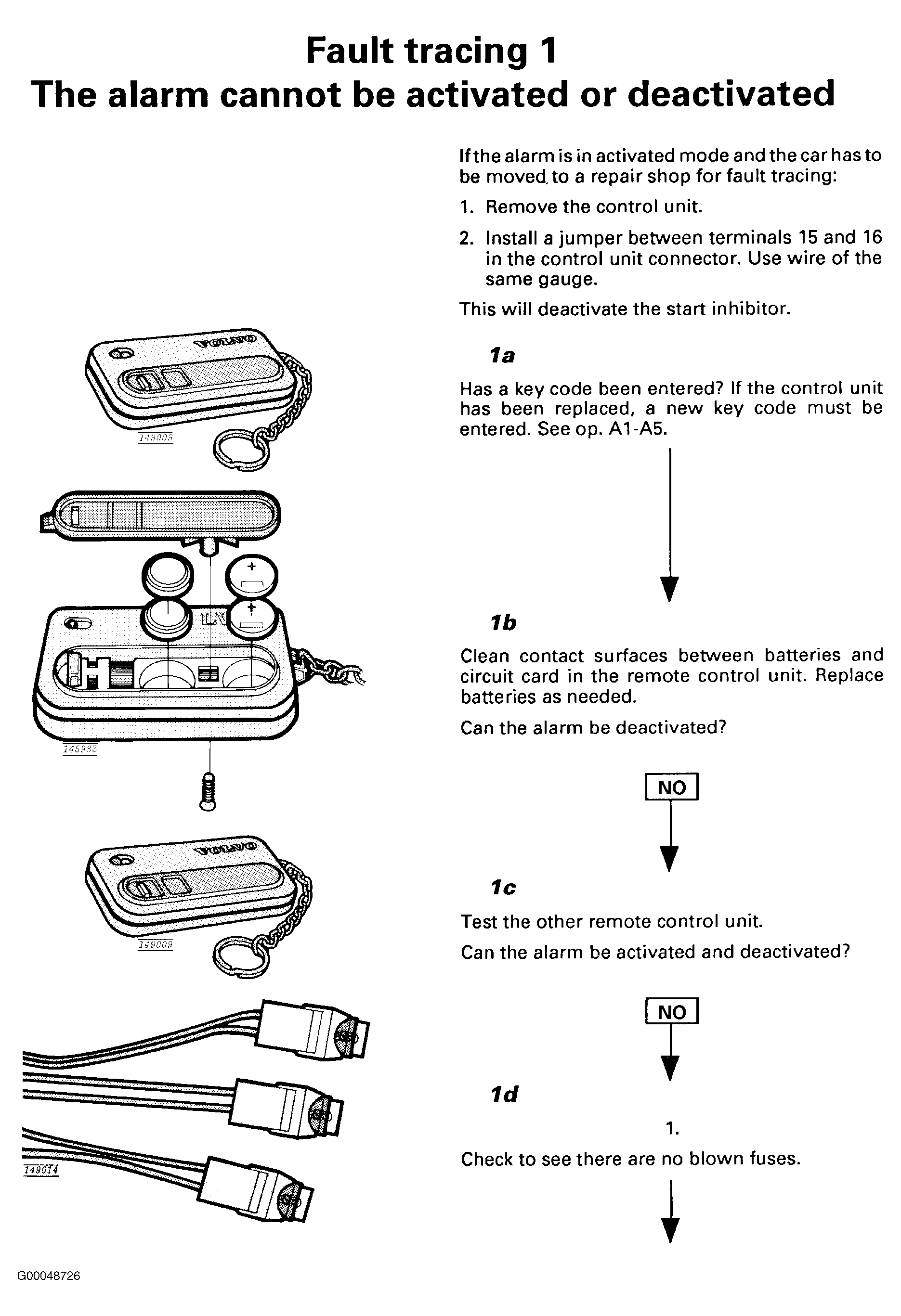

Fig 1: Fault 1: Alarm Cannot Be Activated Or Deactivated (1 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

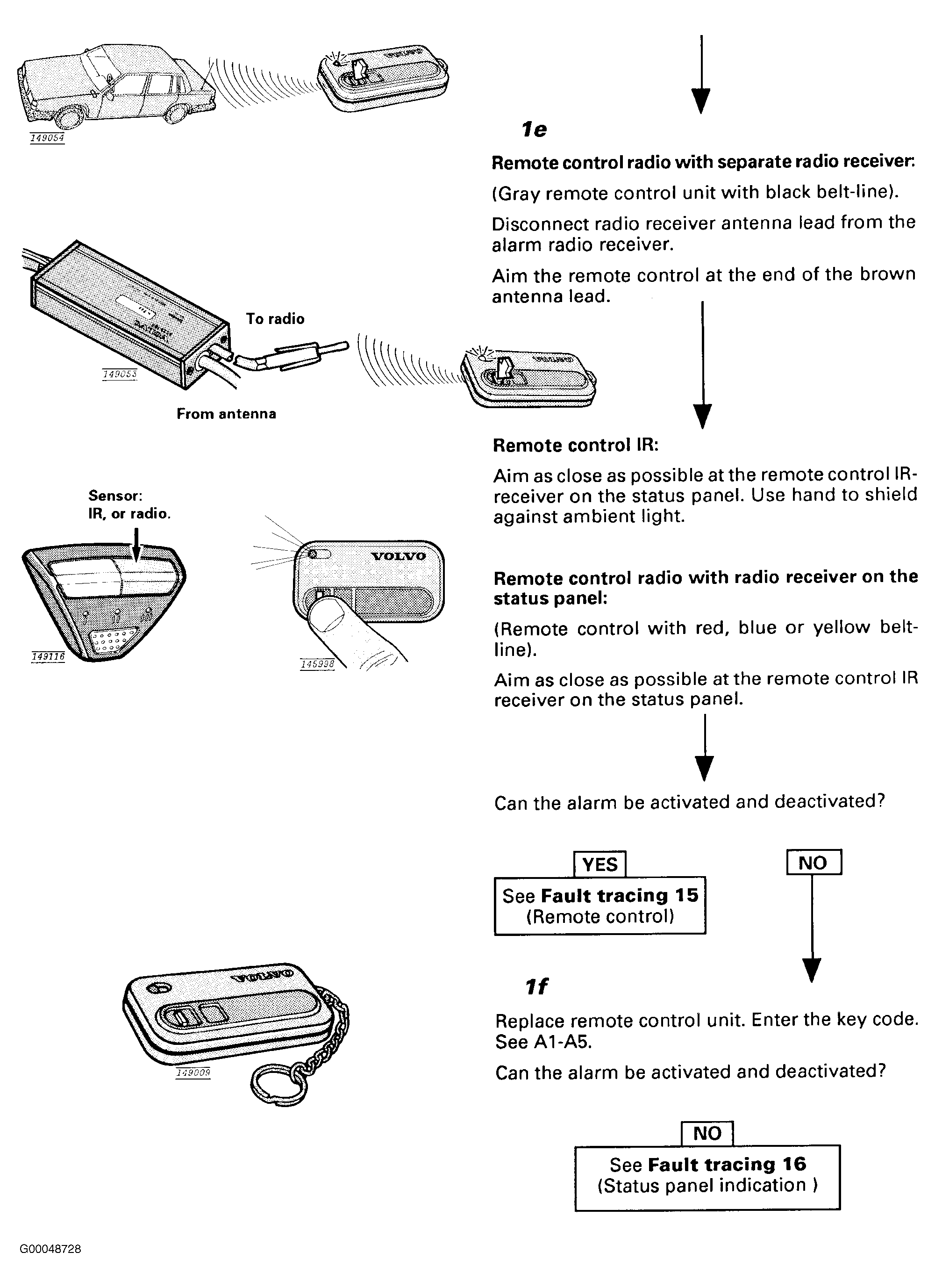

Fig 2: Fault 1: Alarm Cannot Be Activated Or Deactivated (2 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.

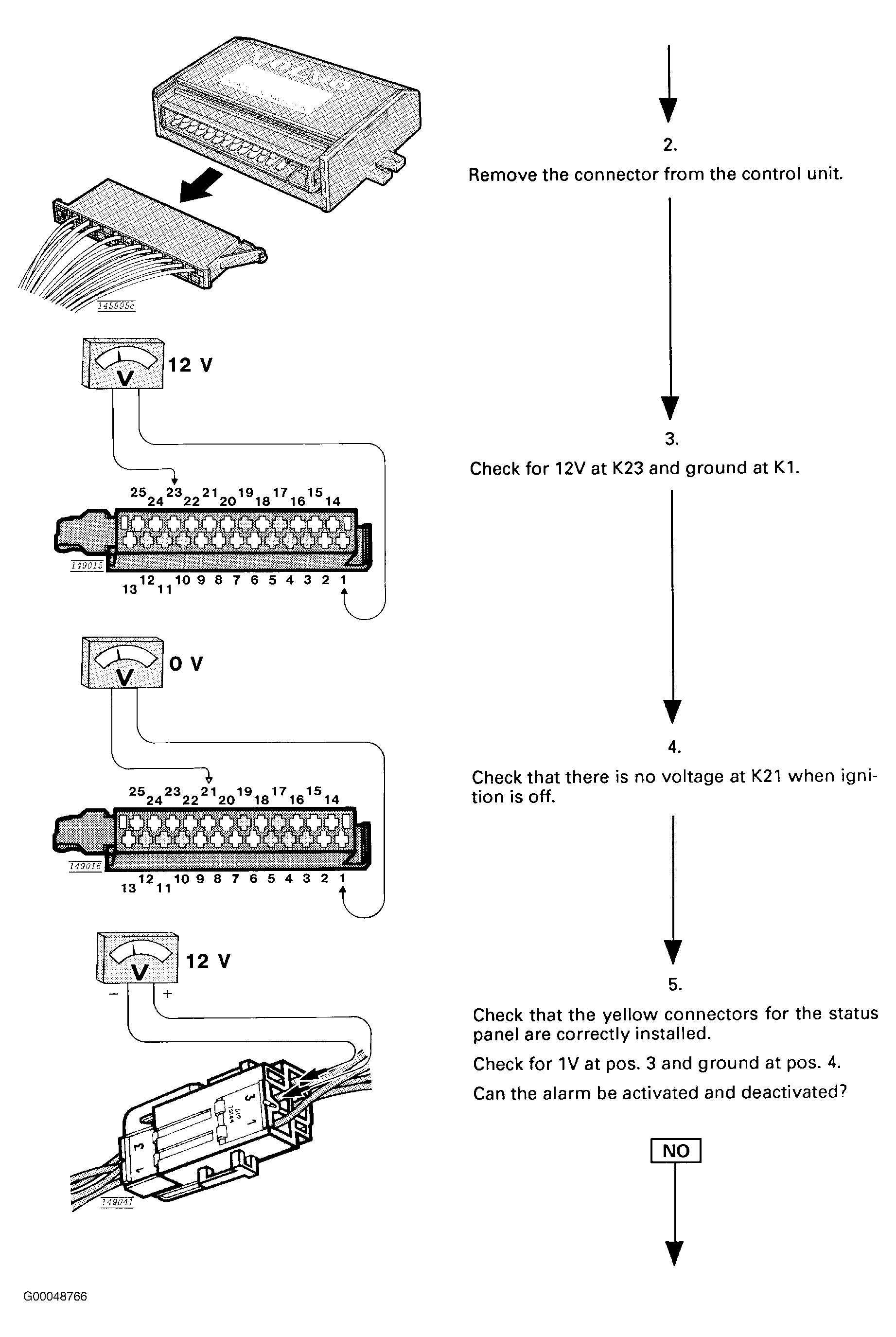

Fig 3: Fault 1: Alarm Cannot Be Activated Or Deactivated (3 Of 3)

Courtesy of VOLVO CARS OF NORTH AMERICA.
