Engine Front Cover Oil Seal: Installation

  1. Using new gasket, install front cover. Install oil pan, drive belt guard plate, and wiring harness.
  2. Using tool (5024), install crankshaft seal. Using similar tool (5025), install intermediate shaft seal in front cover. Install inner belt guide on camshaft (collar facing away from belt). Install camshaft sprocket, aligning notch with dowel on camshaft. Install outer belt guide, washer and center bolt. Hold sprocket with holder tool (5034) and tighten bolt.
  3. Install sprocket on intermediate shaft, aligning notch with dowel on shaft. Use tool (5034) to hold shaft while tightening center bolt.
  4. Install belt guide and sprocket on crankshaft. Install front hub and tighten bolt. Install drive belt and complete installation of previously removed parts.

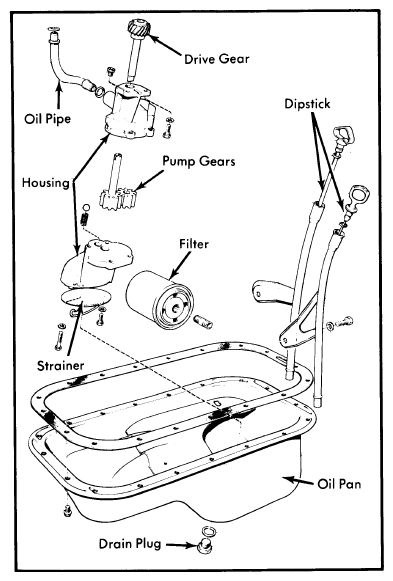

    Fig 1: Oiling System Components
    G09336550Courtesy of VOLVO CARS CORPORATION
