Removal & Installation

  1. Remove clutch housing and transmission as a unit. Remove clutch and flywheel. Remove rear main oil seal flange.
  2. Clean flange area carefully. Fit on sealing flange but do not tighten bolts. Center rear main seal flange using suitable tool (SVO-2439 or equivalent). Adjust position of flange if necessary. Check to see that flange seats flush with underside of block assembly.
  3. Fit new felt ring and install washer and circlip. Press circlip into position using centering tool. Ensure that circlip engages in its groove. Reinstall flywheel, clutch assembly, clutch housing and transmission.

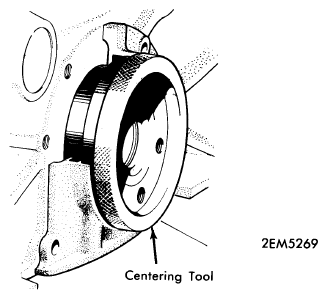

    Fig 1: Centering Rear Sealing Flange
    G09326377Courtesy of VOLVO CARS CORPORATION
