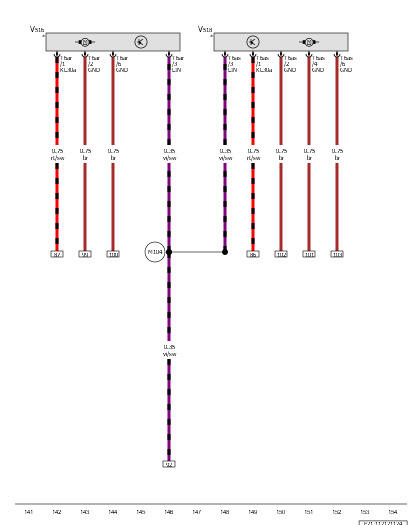

Right Front Seat Backrest Fan 1, Right Front Seat Cushion Fan 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

T6ar

6-Pin Connector, Black

T6as

6-Pin Connector, Black

V516

Right Front Seat Backrest Fan 1

V518

Right Front Seat Cushion Fan 1

M104

LIN Bus Connection 1 (in Right Front Seat Wiring Harness)

*

Pre-Wired Component
