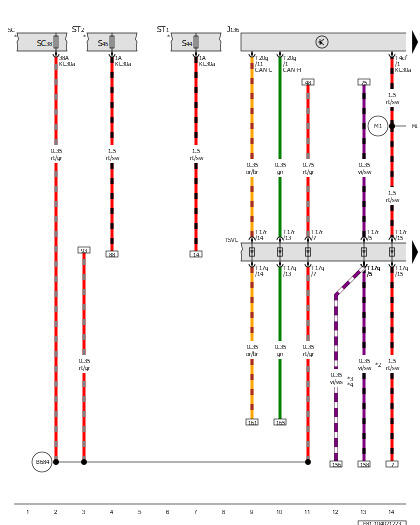

Memory Seat/Steering Column Adjustment Control Module, Fuse Panel C, Fuse Panel 1, Fuse Panel 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J136

Memory Seat/Steering Column Adjustment Control Module

SC

Fuse Panel C

ST1

Fuse Panel 1

ST2

Fuse Panel 2

SC38

Fuse 38 (On Fuse Panel C)

S44

Driver Power Seat Adjustment Circuit Breaker 1

S45

Driver Power Seat Adjustment Circuit Breaker 2

T4cf

4-Pin Connector, Black

T17q

17-Pin Connector, Red

T17r

17-Pin Connector, Red

T20g

20-Pin Connector, Black

TSVL

Left Front Seat Coupling Station

B684

Positive Connection 24 (30a) (in Main Wiring Harness)

M1

Positive Connection 1 (30) (in Seat Adjustment Wiring Harness)

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

For Vehicles Without UNECE Cyber Security

*3

For Vehicles with UNECE Cyber Security

*4

From March 2024
