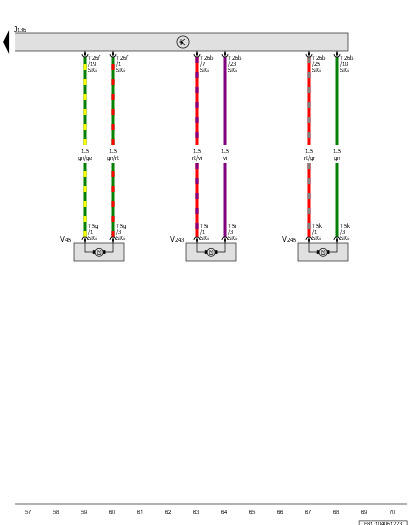

Memory Seat/Steering Column Adjustment Control Module, Driver Backrest Adjustment Motor, Driver Seat Angle Adjustment Motor, Driver Seat Height Adjustment Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J136

Memory Seat/Steering Column Adjustment Control Module

T5g

5-Pin Connector, Brown

T5i

5-Pin Connector, Brown

T5k

5-Pin Connector, Brown

T26b

26-Pin Connector, White

T26f

26-Pin Connector, Blue

V45

Driver Backrest Adjustment Motor

V243

Driver Seat Angle Adjustment Motor

V245

Driver Seat Height Adjustment Motor
