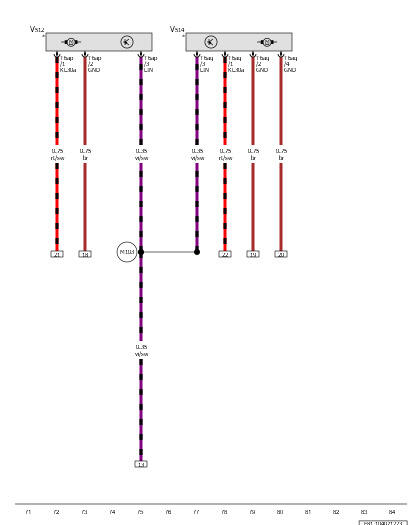

Left Front Seat Backrest Fan 1, Left Front Seat Cushion Fan 1

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

T6ap

6-Pin Connector, Black

T6aq

6-Pin Connector, Black

V512

Left Front Seat Backrest Fan 1

V514

Left Front Seat Cushion Fan 1

M103

LIN Bus Connection 1 (in Left Front Seat Wiring Harness)

*

Pre-Wired Component
