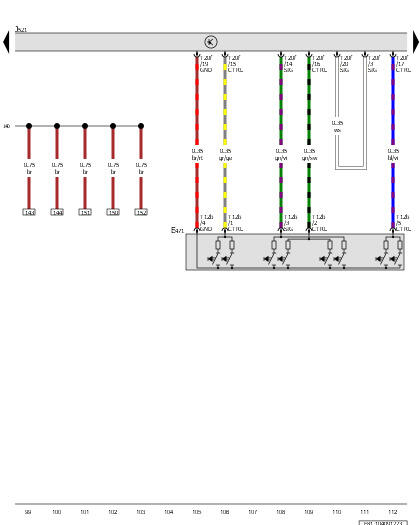

Front Passenger Seat Adjustment Control Head, Front Passenger Memory Seat Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

E471

Front Passenger Seat Adjustment Control Head

J521

Front Passenger Memory Seat Control Module

T12b

12-Pin Connector, Black

T20f

20-Pin Connector, Black

140

Ground Connection 2 (in Seat Adjustment Wiring Harness)
