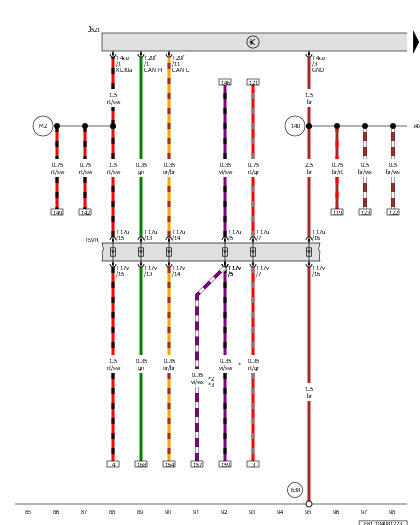

Front Passenger Memory Seat Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J521

Front Passenger Memory Seat Control Module

T4ce

4-Pin Connector, Black

T17u

17-Pin Connector, Red

T17v

17-Pin Connector, Red

T20f

20-Pin Connector, Black

TSVR

Right Front Seat Coupling Station

140

Ground Connection 2 (in Seat Adjustment Wiring Harness)

638

Ground Connection on Right A-Pillar

M2

Positive Connection 2 (30) (in Seat Adjustment Wiring Harness)

*

For Vehicles Without UNECE Cyber Security

*2

For Vehicles with UNECE Cyber Security

*3

From March 2024
